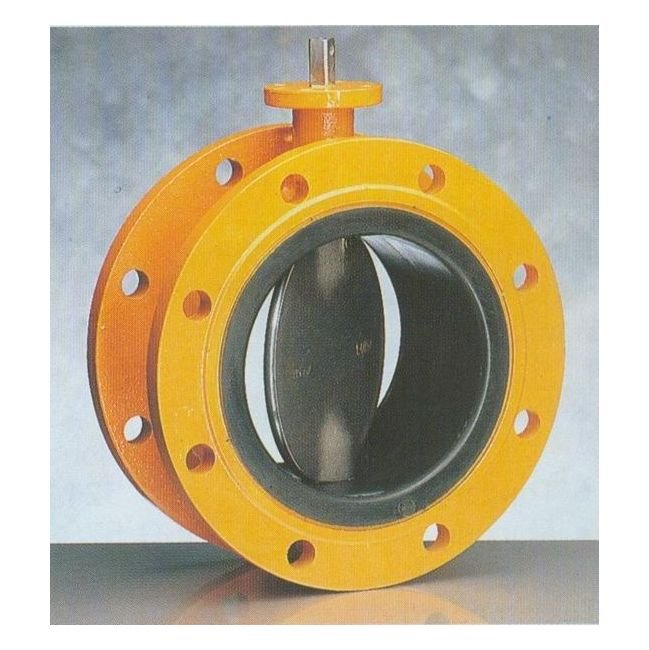

Eurovalve Series EVFL Gear Operated Cast Iron Flanged Long DIN Butterfly Valve
Eurovalve Series EVFL Gear Operated Cast Iron Flanged Long DIN Butterfly Valve
SKU:VAL-d07071
High-performance Eurovalve Series EVFL Butterfly Valve, crafted for precision and durability.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Eurovalve Series EVFL Gear Operated Cast Iron Flanged Long DIN Butterfly Valve
$699.99
Quantity: 1
Claim Your Seller Account
Eurovalve Series EVFL Gear Operated Cast Iron Flanged Long DIN Butterfly Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eurovalve Series EVFL Gear Operated Butterfly Valve is designed for precision control and reliable performance. Constructed with high-quality GG25 Cast Iron, it ensures durability and corrosion resistance. This valve is versatile, functioning as an isolating valve and a regulating valve, with a shut-off pressure range suitable for various applications. Compliant with DIN standards and featuring an EPDM liner, it meets stringent industry requirements for safety and performance.
Ready to Grow Without Cash Flow Constraints?

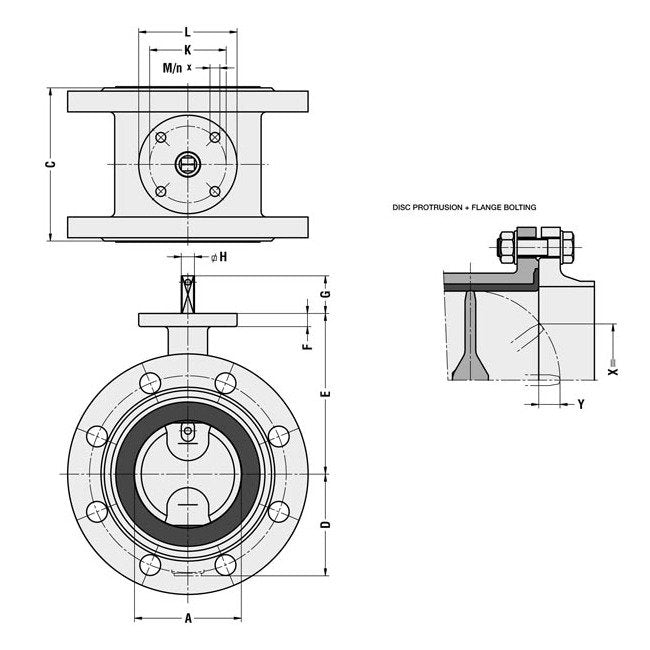

Product Specifications
Specifications A
200 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
230 mm
Specifications D
158 mm
Specifications E
204 mm
Specifications F
14 mm
Specifications Flange Connections
PN 10
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F10
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 10
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN200 - 8" | 200 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
45.0 kg
