Eurovalve Series EVFS DN250 Double Flanged Ductile Iron Butterfly Valve
Eurovalve Series EVFS DN250 Double Flanged Ductile Iron Butterfly Valve
SKU:VAL-ce5a53
Premium Eurovalve Series EVFS DN250 Double Flanged Butterfly Valve for industrial fluid control. Durable, high pressure-resistant, and compliant with DIN standards & multiple approvals.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Eurovalve Series EVFS DN250 Double Flanged Ductile Iron Butterfly Valve
$699.99
Quantity: 1
Claim Your Seller Account
Eurovalve Series EVFS DN250 Double Flanged Ductile Iron Butterfly Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eurovalve Series EVFS DN250 Double Flanged Ductile Iron Butterfly Valve is a premium solution for industrial fluid control. With a robust construction of Ductile Iron and Stainless Steel, it offers exceptional durability and corrosion resistance. This valve functions as both an isolating and regulating valve, with a shut-off pressure of up to 16 bar. Compliant with DIN standards and approved by ABS, DNV, and more, it meets the stringent requirements of institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

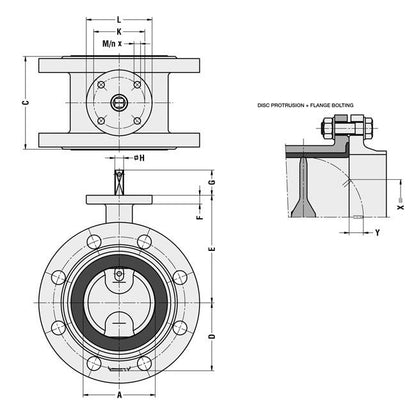

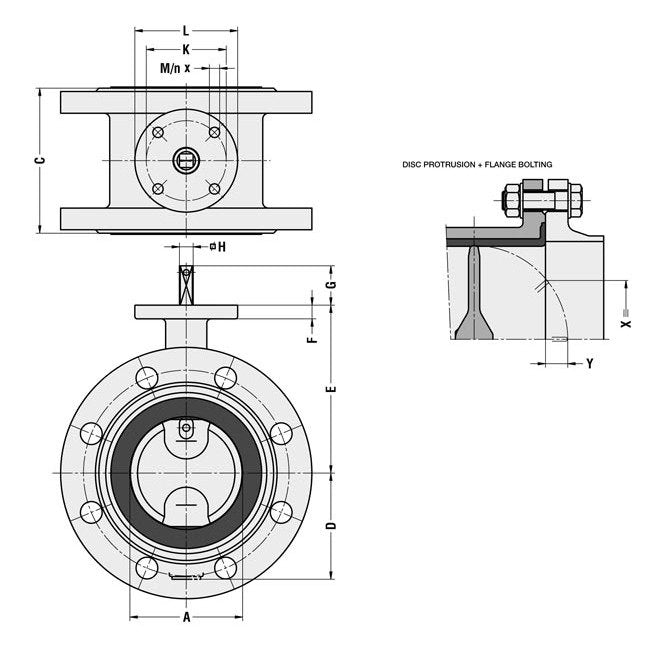

Specifications A
250 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Ductile Iron
Specifications C
165 mm
Specifications D
194 mm
Specifications E
245 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN250 - 10" | 250 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
50.0 kg
Specifications X
188 mm
Specifications Y
43 mm
