Eurovalve Series EVFS Ductile Iron Double-Flanged DIN Butterfly Valve
Eurovalve Series EVFS Ductile Iron Double-Flanged DIN Butterfly Valve
SKU:VAL-67905e
Top-tier Eurovalve Series EVFS Double Flanged Butterfly Valve for precise industrial control.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Eurovalve Series EVFS Ductile Iron Double-Flanged DIN Butterfly Valve
$799.99
Quantity: 1
Claim Your Seller Account
Eurovalve Series EVFS Ductile Iron Double-Flanged DIN Butterfly Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eurovalve Series EVFS Bare Shafted Ductile Iron Double Flanged Type DIN Butterfly Valve delivers reliable performance in industrial settings. With a size of DN200 (8") and PN10 pressure rating, this valve offers precise control and shut-off capabilities. Certified by ABS, BV, DNV, and more, it ensures compliance with industry standards. Featuring a bare shaft actuation and sturdy stainless steel construction, this valve is ideal for isolating and regulating applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

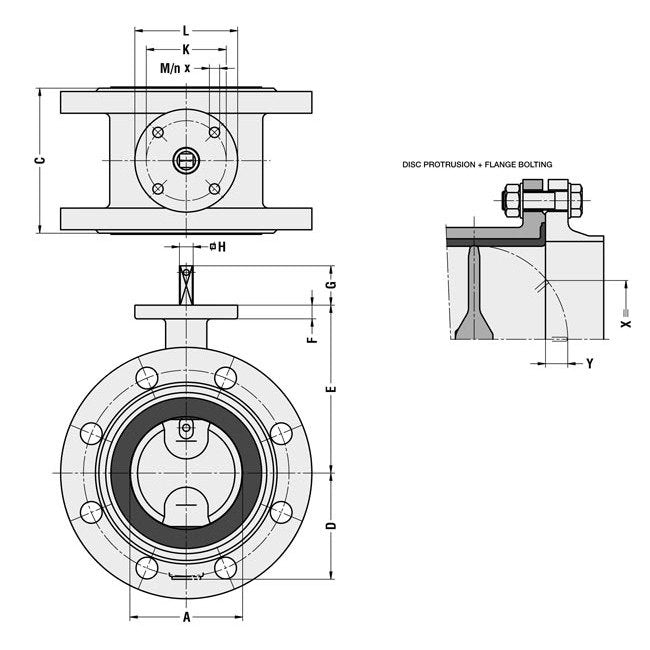

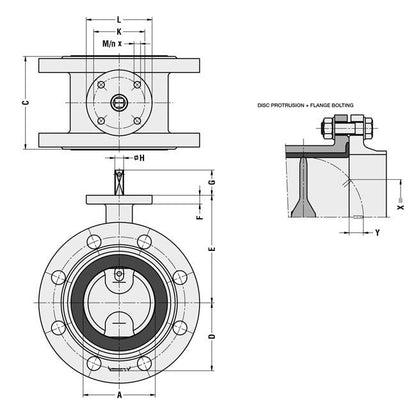

Specifications A
200 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Ductile Iron
Specifications C
152 mm
Specifications D
158 mm
Specifications E
204 mm
Specifications F
14 mm
Specifications Flange Connections
PN 10
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN200 - 8" | 200 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
32.0 kg
Specifications X
130 mm
Specifications Y
24 mm
