Eurovalve Series EVS Wafer Type Cast Iron Butterfly Valve

Eurovalve Series EVS Wafer Type Cast Iron Butterfly Valve

VAL-dec400

Eurovalve Series EVS Wafer Butterfly Valve - DN600, PN10/16. Isolating & regulating functions. Cast iron body, aluminum bronze disc, DIN standards, multiple certifications.

$899.99
$899.99
Sale

Initiate Order

Eurovalve Series EVS Wafer Type Cast Iron Butterfly Valve

Eurovalve Series EVS Wafer Type Cast Iron Butterfly Valve

$899.99

Quantity: 1

Claim Your Seller Account

Eurovalve Series EVS Wafer Type Cast Iron Butterfly Valve

Eurovalve Series EVS Wafer Type Cast Iron Butterfly Valve

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Eurovalve Series EVS Wafer Type Cast Iron Butterfly Valve in DN600 size offers precise isolating and regulating valve functions. With a body made of durable cast iron, and a disc and stem crafted from quality materials like aluminum bronze and stainless steel, this valve ensures reliable performance. Compliant with DIN standards, PN 10/16 pressures, and a range of certifications like ABS, DNV, and UL, this butterfly valve is suitable for various industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

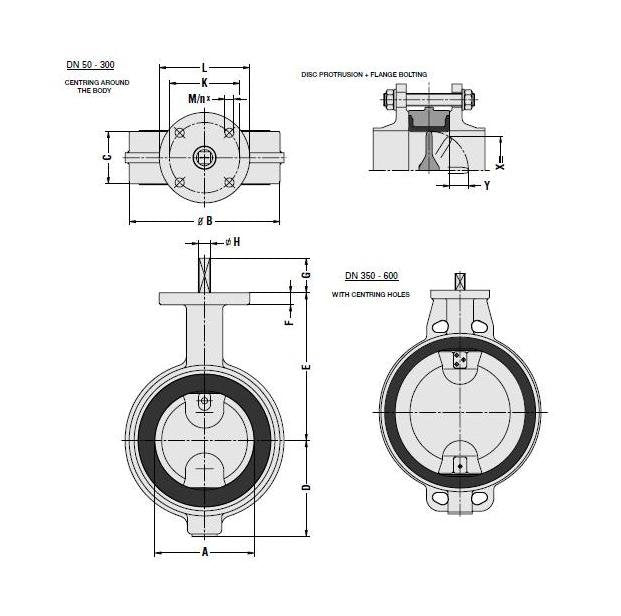

Specifications A
586 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
672 mm
Specifications C
154 mm
Specifications D
426 mm
Specifications Disc Material
Aluminum Bronze
Specifications E
510 mm
Specifications F
25 mm
Specifications Flange Connections
PN 10 | PN 16
Specifications G
50 mm
Specifications H Diameter
40 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN600 - 24" | 600 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
180.0 kg
Specifications X
566 mm
Specifications Y
216 mm
