Eurovalve Series EVTLS Butterfly Valve

Name: Eurovalve Series EVTLS Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-158ef8
Price: 1899.99 USD
Availability: OutOfStock

SKU:VAL-158ef8

Eurovalve Series EVTLS Full Lug Butterfly Valve - ISO/EN Compliant, Durable & Reliable. DN1200 Size, ABS/DNV/UL Approved. Explore Now!

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

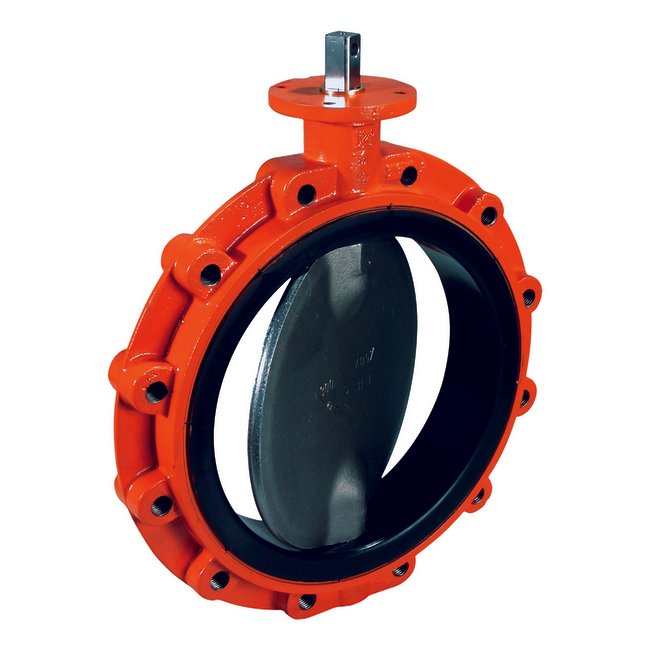

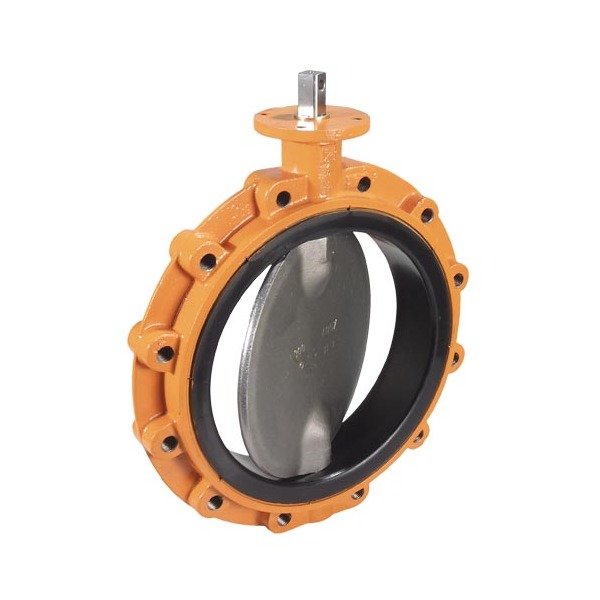

The Eurovalve Series EVTLS Full Lug Butterfly Valve offers superior performance and durability for a wide range of industrial applications. Built to ISO and EN standards, this valve features a vulcanized rubber lining, ensuring a tight shut-off with leakage rate conforming to ISO 5208, Rate A. With versatile actuation options and a variety of approved body materials, including Ductile Iron and Stainless Steel, this valve provides reliable service in demanding environments. Available in sizes up to DN1200 (48") and compliant with ABS, DNV, UL, and more, the Eurovalve Series EVTLS is a top choice for institutions seeking quality valves.

Product Specifications

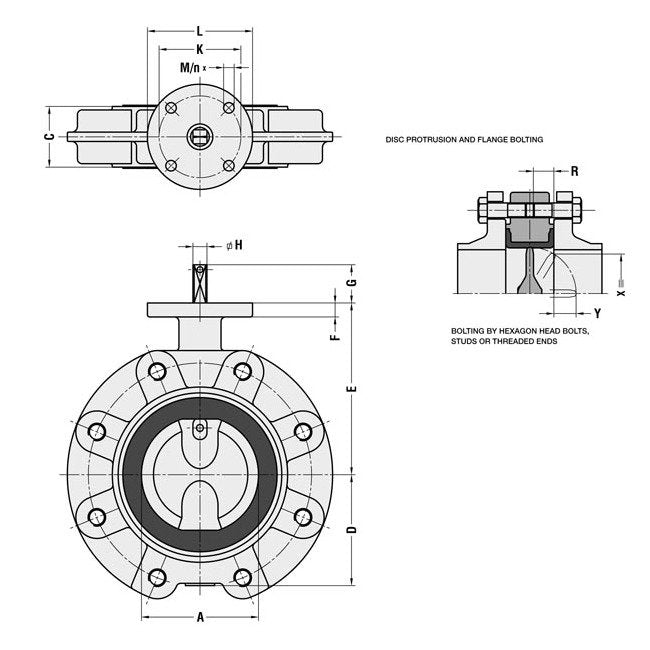

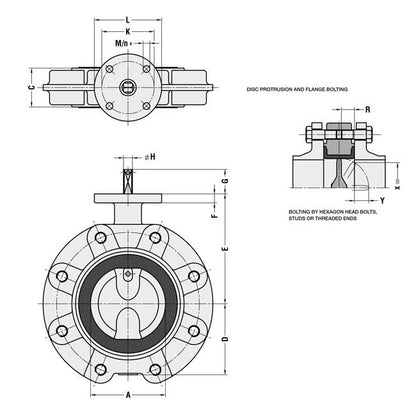

Specifications A

1186 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC

Specifications Body Material

Ductile Iron

Specifications C

254 mm

Specifications Flange Connections

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications Size

DN1200 - 48" | 1200 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

1400.0 kg
