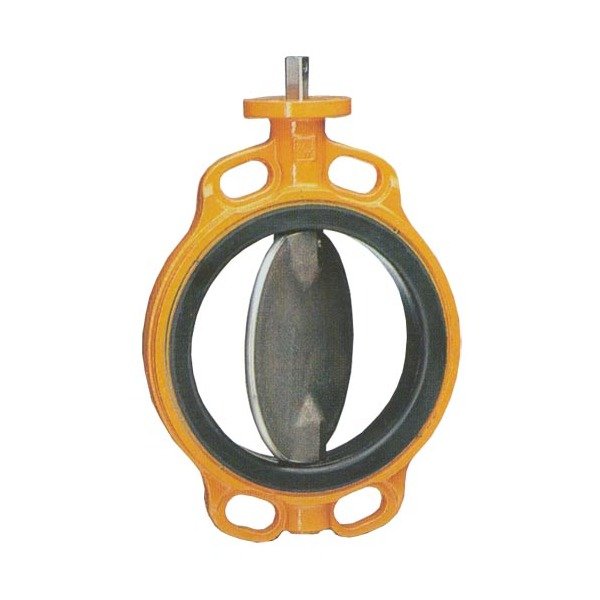

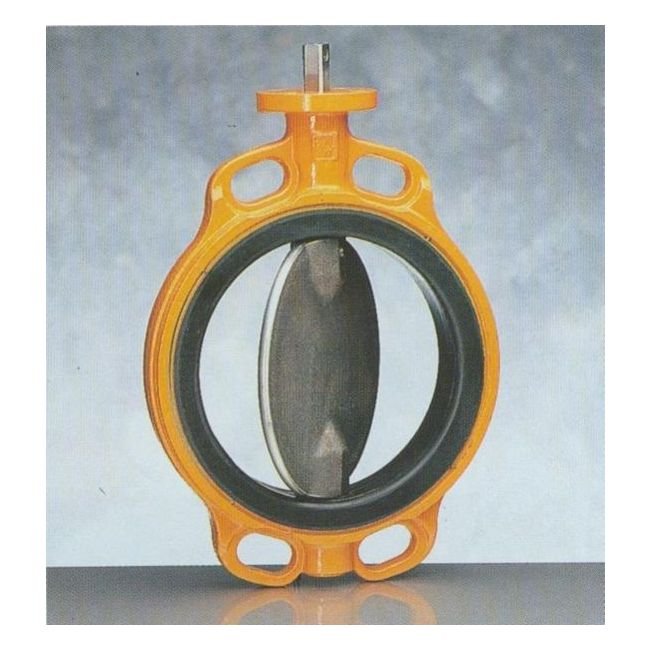

EVBS Cast Iron Butterfly Valve
EVBS Cast Iron Butterfly Valve
SKU:VAL-5b92d6
High-quality DN65 PN16 Cast Iron Butterfly Valve for precise flow control in institutional settings. DIN-compliant and durable design.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
EVBS Cast Iron Butterfly Valve
$289.99
Quantity: 1
Claim Your Seller Account
EVBS Cast Iron Butterfly Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EVBS Cast Iron Butterfly Valve, with a Size of DN65 (2-1/2 inches) and PN16 rating, is a versatile valve suitable for both isolating and regulating functions. With a sturdy construction of GG25 Cast Iron and Stainless Steel shaft material, this valve ensures durability and reliable performance. The valve's compliance with DIN standards and a variety of certifications make it an ideal choice for institutional procurement needs.
Product Specifications

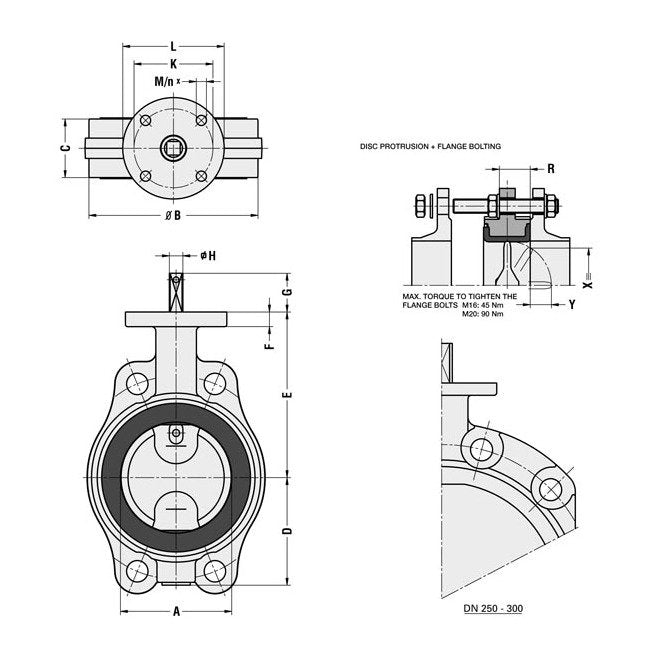

Specifications A
65 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
115 mm
Specifications C
46 mm
Specifications D
71 mm
Specifications E
126 mm
Specifications F
12 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
10 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R
32 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN65 - 2-1/2" | 65 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
3.6 kg
Specifications X
46 mm
Specifications Y
10 mm
