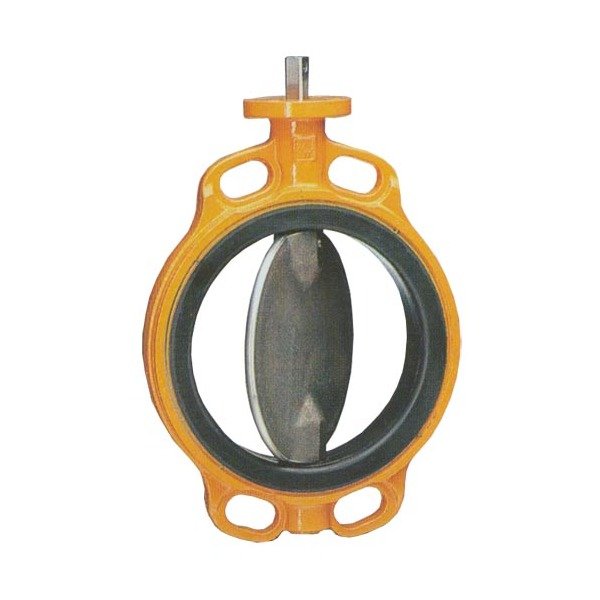

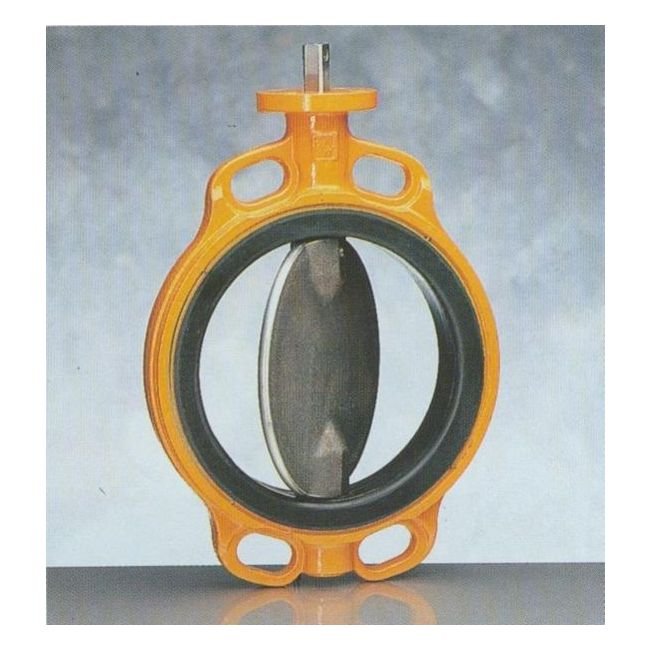

EVBS Semi Lug Ductile Iron Butterfly Valve DN150 PN16
EVBS Semi Lug Ductile Iron Butterfly Valve DN150 PN16
SKU:VAL-1a95db
Premium DN150 PN16 Ductile Iron Butterfly Valve for efficient flow control.
Regular price
$369.99
Regular price
Sale price
$369.99
Unit price
per
Initiate Order
EVBS Semi Lug Ductile Iron Butterfly Valve DN150 PN16
$369.99
Quantity: 1
Claim Your Seller Account
EVBS Semi Lug Ductile Iron Butterfly Valve DN150 PN16
$369.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series EVBS Semi Lug Wafer Type DIN Butterfly Valve is a high-performance valve designed for both isolating and regulating flow control. With a durable Ductile Iron body and Stainless Steel shaft, this valve ensures long-lasting reliability even in demanding industrial environments. Compliant with DIN standards and approved by ABS, BV, DNV, and more, it meets stringent quality requirements for institutional and government procurement.
Product Specifications

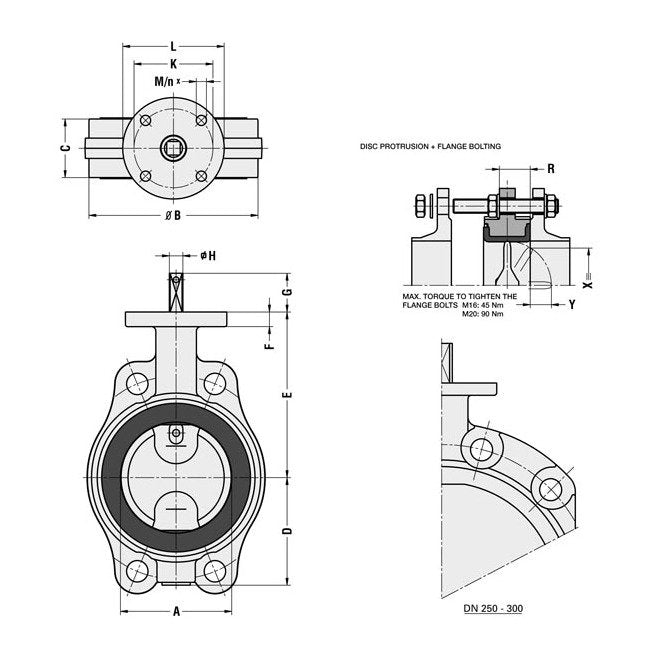

Specifications A
150 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
210 mm
Specifications C
56 mm
Specifications D
133 mm
Specifications E
180 mm
Specifications F
14 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R
39 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN150 - 6" | 150 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
9.5 kg
Specifications X
140 mm
Specifications Y
47 mm
