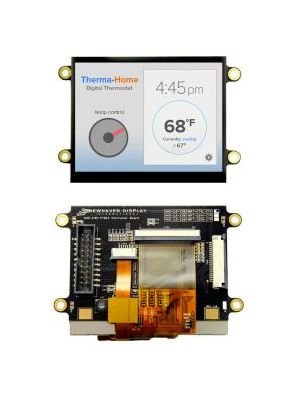

EVE2 TFT 3.5 Inch Premium MVA Capacitive LCD Display Module
EVE2 TFT 3.5 Inch Premium MVA Capacitive LCD Display Module
SKU:EVE-740c4f
Enhance visuals with the EVE2 Premium 3.5'' MVA Capacitive LCD Module. QVGA resolution, capacitive touch, SPI interface. RoHS, REACH compliant, and lead-free for sustainable performance.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
EVE2 TFT 3.5 Inch Premium MVA Capacitive LCD Display Module
$45.99
Quantity: 1
Claim Your Seller Account
EVE2 TFT 3.5 Inch Premium MVA Capacitive LCD Display Module
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your display solutions with the EVE2 Thin Film Transistor (TFT) 3.5-inch premium Multi-Domain Vertical Alignment (MVA) Capacitive LCD Display Module. This module features a clear 320x240 QVGA resolution, capacitive touch panel, and SPI interface for seamless integration. With RoHS, REACH compliance, and lead-free construction, this module ensures environmental sustainability and performance reliability. Ideal for applications requiring vivid RGB graphics and reliable touch functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
63.9 mm
Dimension Outline Width
92 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT813
Specifications Country Of Origin
China
Specifications Diagonal Size
3.5 in | 88.90 mm
Specifications Display Format
320 x 240 Pixels | Quarter Video Graphics Array (QVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Premium Multi-Domain Vertical Alignment (MVA)
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Capacitive
Specifications View
Full
Specifications Voltage Supply
3.3 V
