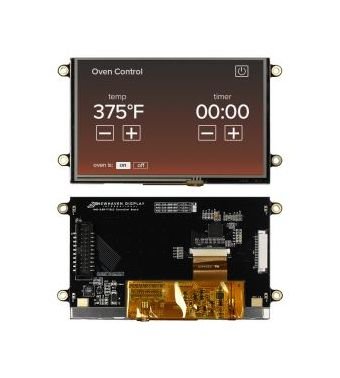

Upgrade your display solutions with the EVE2 Thin Film Transistor (TFT) 5-Inch Premium Multi-Domain Vertical Alignment (MVA) Capacitive Graphic LCD Display Module. This module features a high-quality 800 x 480 pixel resolution in Wide Video Graphics Array (WVGA) format, with vibrant Red, Green, Blue (RGB) colors and a touch-sensitive capacitive panel. With a sleek design and a Full view display mode, this module is perfect for various applications requiring a reliable and visually impressive display. It is also compliant with RoHS, REACH, lead-free, and static-sensitive standards.
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
75.8 mm
Dimension Outline Width
135.8 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT813
Specifications Country Of Origin
China
Specifications Diagonal Size
5 in | 127.00 mm
Specifications Display Format
800 x 480 Pixels | Wide Video Graphics Array (WVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Premium Multi-Domain Vertical Alignment (MVA)
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Capacitive
Specifications View
Full
Specifications Voltage Supply
3.3 V
