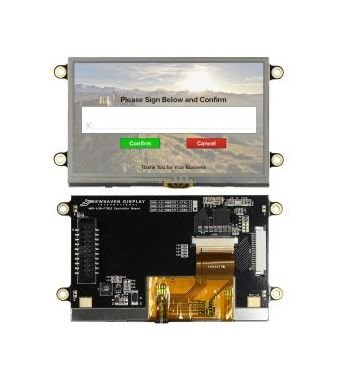

EVE2 Thin Film Transistor (TFT) Module - 4.3 Inch Premium MVA Resistive LCD Display
EVE2 Thin Film Transistor (TFT) Module - 4.3 Inch Premium MVA Resistive LCD Display
SKU:EVE-10a4d9
High-performance 4.3-inch Premium MVA Resistive LCD Display Module for vivid visuals and eco-friendly design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
EVE2 Thin Film Transistor (TFT) Module - 4.3 Inch Premium MVA Resistive LCD Display
$49.99
Quantity: 1
Claim Your Seller Account
EVE2 Thin Film Transistor (TFT) Module - 4.3 Inch Premium MVA Resistive LCD Display
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional visual performance with the EVE2 Thin Film Transistor (TFT) Module featuring a 4.3-inch Premium Multi-Domain Vertical Alignment (MVA) Resistive Graphic LCD Display. This module boasts a vibrant 480 x 272 pixel resolution, Transmissive display mode, RGB color support, and a user-friendly Resistive Touch Panel. With compliance to RoHS, REACH, and lead-free standards, this module offers reliability and eco-friendliness suitable for various applications. Enhance your projects with the FT812 controller, SPI interface, and white LED backlight for optimal viewing.
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
67.2 mm
Dimension Outline Width
120.6 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT812
Specifications Country Of Origin
China
Specifications Diagonal Size
4.3 in | 109.22 mm
Specifications Display Format
480 x 272 Pixels | Wide Quarter Video Graphics Array (WQVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Premium Multi-Domain Vertical Alignment (MVA)
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Resistive
Specifications View
Full
Specifications Voltage Supply
3.3 V
