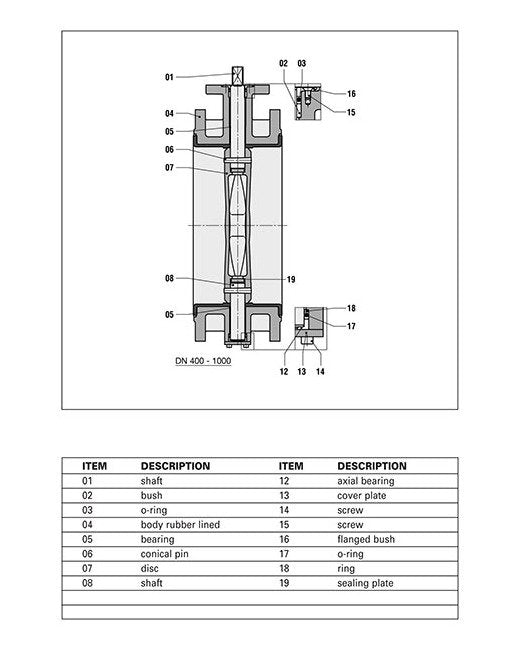

The EVFL Double Flanged Long Valve from the Series EVFL is a high-performance concentric butterfly valve designed to meet strict institutional procurement standards. With a robust construction featuring vulcanized rubber lining, this valve ensures bi-directional tight shut off, making it ideal for isolating and regulating valve functions. Available in a wide range of sizes from DN40 to 2000, various material options including ductile iron and stainless steel, and multiple actuation possibilities such as manual, electric, pneumatic, and hydraulic, the EVFL Valve offers versatility and reliability for industrial applications. This valve complies with ISO standards, offering top-notch performance and longevity for critical operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
786 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications C
470 mm
Specifications D
525 mm
Specifications E
610 mm
Specifications F
25 mm
Specifications Flange Connections
ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6
Specifications G
60 mm
Specifications H Diameter
46 mm
Specifications Iso 5211
F16
Specifications K
165 mm
Specifications L
210 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
21 mm
Specifications N Number Of Holes
4
Specifications Size
DN800 - 32" | 800 mm
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
610.0 kg
Specifications X
630 mm
Specifications Y
158 mm
