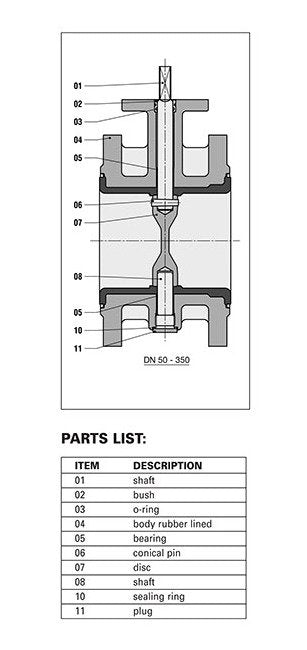

  • EVFL Gear-Operated Cast Iron Butterfly Valve (DIN Long Type) - Image 3
  • EVFL Gear-Operated Cast Iron Butterfly Valve (DIN Long Type) - Image 4
1 4
World Wide Metric, Inc. →

EVFL Gear-Operated Cast Iron Butterfly Valve (DIN Long Type)

EVFL Gear-Operated Cast Iron Butterfly Valve (DIN Long Type)

VAL-ce2015

Durable EVFL Gear-Operated Cast Iron Butterfly Valve with precise control, ideal for industrial applications.

$899.99
$899.99
Sale

Initiate Order

EVFL Gear-Operated Cast Iron Butterfly Valve (DIN Long Type)

EVFL Gear-Operated Cast Iron Butterfly Valve (DIN Long Type)

$899.99

Quantity: 1

Claim Your Seller Account

EVFL Gear-Operated Cast Iron Butterfly Valve (DIN Long Type)

EVFL Gear-Operated Cast Iron Butterfly Valve (DIN Long Type)

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The EVFL Gear-Operated Cast Iron Butterfly Valve is a robust solution for industrial applications, featuring a DN350 size with PN10 pressure rating. This valve serves as an isolating and regulating valve, constructed with high-quality materials like GG25 Cast Iron and EPDM liner. The gear actuation ensures precise control, meeting stringent DIN standards for performance and durability. Approved by leading institutions like ABS and DVGW, this valve offers reliable shut-off pressure up to 16 bar, making it ideal for critical systems.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A
336 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
290 mm
Specifications D
256 mm
Specifications E
315 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F14
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 10
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN350 - 14" | 350 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
120.0 kg
Specifications X
170 mm
Specifications Y
23 mm
