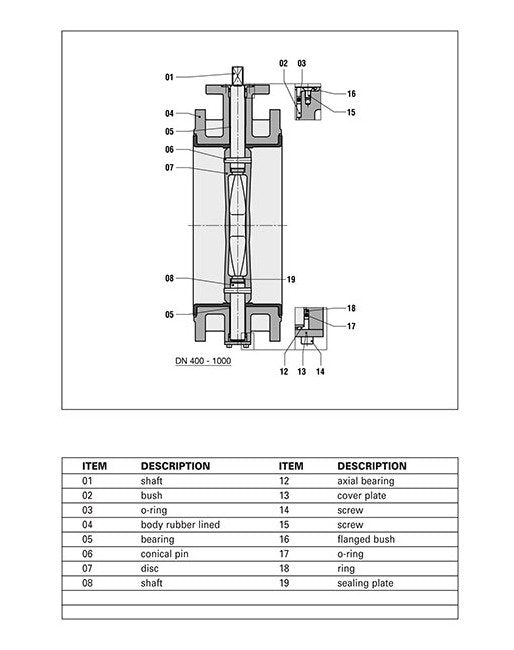

  • EVFL Gear Operated Cast Iron Butterfly Valve - DN500/PN10 - Image 3
  • EVFL Gear Operated Cast Iron Butterfly Valve - DN500/PN10 - Image 4
1 4
World Wide Metric, Inc. →

EVFL Gear Operated Cast Iron Butterfly Valve - DN500/PN10

EVFL Gear Operated Cast Iron Butterfly Valve - DN500/PN10

VAL-9c80ec

Durable Series EVFL Cast Iron Butterfly Valve - Ideal for Isolation & Regulation. Compliant with DIN Standards & Multiple Type Approvals.

$899.99
$899.99
Sale

Initiate Order

EVFL Gear Operated Cast Iron Butterfly Valve - DN500/PN10

EVFL Gear Operated Cast Iron Butterfly Valve - DN500/PN10

$899.99

Quantity: 1

Claim Your Seller Account

EVFL Gear Operated Cast Iron Butterfly Valve - DN500/PN10

EVFL Gear Operated Cast Iron Butterfly Valve - DN500/PN10

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series EVFL Gear Operated Cast Iron Butterfly Valve is a top-of-the-line solution for industrial fluid control. With a sturdy cast iron body and stainless steel shaft, this valve guarantees durability and reliability in demanding applications. Its EPDM liner ensures tight shut-off, making it suitable for isolating and regulating functions. Compliant with DIN standards and weighing 230.0 kg, this valve is approved by ABS, BV, DVGW, and more, meeting the highest industry benchmarks.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A
486 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
350 mm
Specifications D
360 mm
Specifications E
413 mm
Specifications F
25 mm
Specifications Flange Connections
PN 10
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 10
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN500 - 20" | 500 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
230.0 kg
Specifications X
337 mm
Specifications Y
68 mm
