EVFL Series Double Flanged Long Butterfly Valve

EVFL Series Double Flanged Long Butterfly Valve

VAL-7cb203

Premium EVFL Double Flanged Long Butterfly Valve for reliable industrial flow control. Versatile actuation options, ISO standards compliance, and robust construction for seamless integration and high performance.

$2,899.99
$2,899.99
Sale

Initiate Order

EVFL Series Double Flanged Long Butterfly Valve

EVFL Series Double Flanged Long Butterfly Valve

$2,899.99

Quantity: 1

Claim Your Seller Account

EVFL Series Double Flanged Long Butterfly Valve

EVFL Series Double Flanged Long Butterfly Valve

$2,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The EVFL Series Double Flanged Long Butterfly Valve is a top-quality solution for industrial fluid control needs. With a robust design featuring various actuation possibilities including manual, electric, pneumatic, and hydraulic, this valve offers versatile functionality. It meets ISO standards for face-to-face dimensions, ensuring seamless integration with existing systems. The valve boasts a wide range of size options, durable construction materials including stainless steel and ductile iron, and tight shut-off pressure ratings up to 16 bar. Whether for isolating or regulating flow, this valve delivers reliable performance in demanding environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

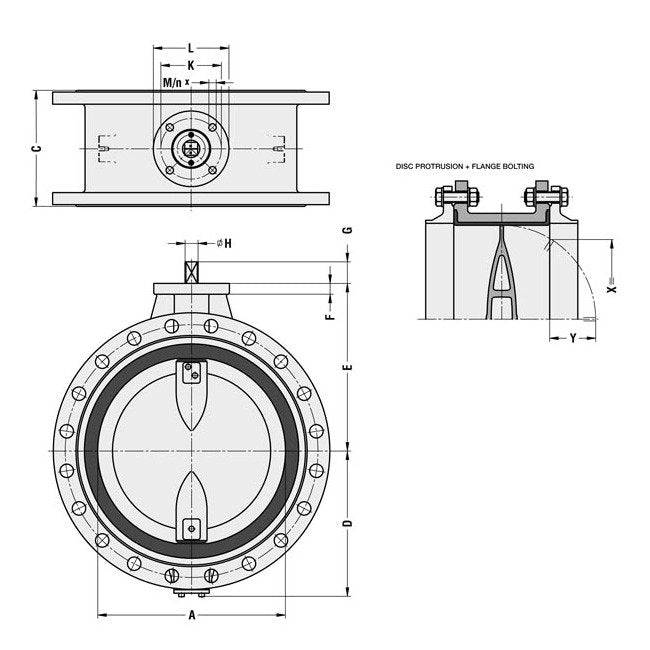

Product Specifications

Specifications A
1386 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | BV | DVGW | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications C
530 mm
Specifications D
970 mm | 980 mm
Specifications E
955 mm
Specifications F
35 mm
Specifications Flange Connections
ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6
Specifications G
85 mm | 100 mm
Specifications H Diameter
75 mm | 90 mm
Specifications Iso 5211
F30
Specifications K
356 mm
Specifications L
415 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
31 mm
Specifications N Number Of Holes
8
Specifications Size
DN1400 - 56" | 1400 mm
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
2100.0 kg
Specifications X
1184 mm
Specifications Y
330 mm
