EVFS Butterfly Valve - Double Flanged Short Valve
EVFS Butterfly Valve - Double Flanged Short Valve
SKU:VAL-e7f72b
High-performance EVFS Butterfly Valve for reliable operations. ISO 5208 compliant, versatile materials & sizes, certified quality.
Regular price
$3,500.00
Regular price
Sale price
$3,500.00
Unit price
per
Initiate Order
EVFS Butterfly Valve - Double Flanged Short Valve
$3,500.00
Quantity: 1
Claim Your Seller Account
EVFS Butterfly Valve - Double Flanged Short Valve
$3,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EVFS Butterfly Valve is a top-performing solution designed for efficiency and durability in industrial operations. With a concentric design and Vulcanized Rubber Lining, this valve ensures a tight shut off in both directions, meeting ISO 5208 Rate A leakage standard. Available in various sizes and materials including Ductile Iron, Stainless Steel, and Bronze RG10, the valve offers versatility in different applications. Actuation options such as Manual, Electric, Pneumatic, and Hydraulic provide flexibility for diverse operational needs. With certifications from reputable bodies like KIWA, DVGW, and ABS, this valve guarantees quality and reliability for your projects.

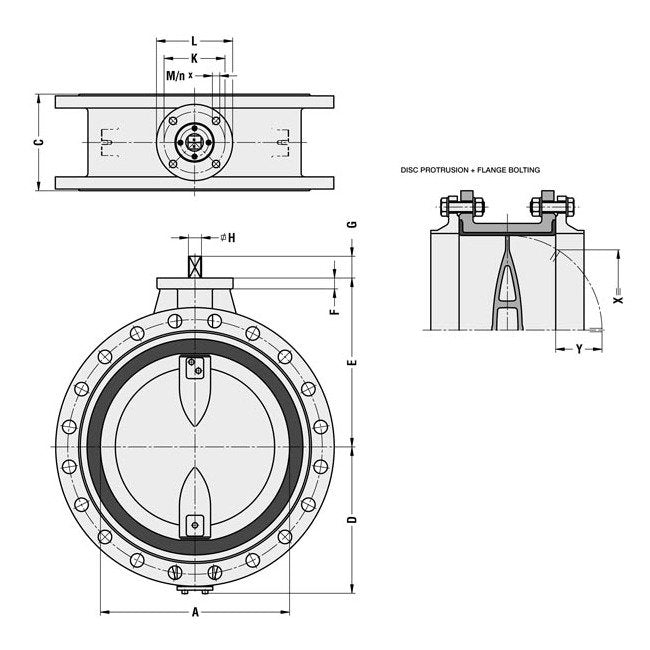

Product Specifications
Specifications A
1776 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications C
670 mm
Specifications D
1187 mm
Specifications E
1176 mm
Specifications F
50 mm
Specifications Flange Connections
ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6
Specifications G
100 mm | 120 mm
Specifications H Diameter
90 mm | 105 mm
Specifications Iso 5211
F35 | F40
Specifications K
356 mm | 406 mm
Specifications L
415 mm | 475 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
31 mm | 37 mm
Specifications N Number Of Holes
8
Specifications Size
DN1800 - 72" | 1800 mm
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
3500.0 kg
Specifications X
1642 mm
Specifications Y
550 mm
