EVFS Double Flanged Short Valve 1400mm

Name: EVFS Double Flanged Short Valve 1400mm
Brand: World Wide Metric, Inc.
SKU: VAL-5981aa
Price: 2799.99 USD
Availability: OutOfStock

SKU:VAL-5981aa

Versatile EVFS Valve for industrial use, DN1400, ISO compliant, various actuation options.

$2,799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EVFS Double Flanged Short Valve in 1400mm size offers superior performance in industrial applications. Compliant with ISO 5752/EN 558, it features a robust design with materials like GGG40 Ductile Iron and Duplex Stainless Steel. With options for manual, electric, pneumatic, or hydraulic actuation, this valve ensures precise control. Meeting ISO 5208 standards for tight shut off, it is ideal for isolating and regulating pressures up to 16 bar. Approved by ABS, BV, DNV, and more, this valve guarantees reliability in critical operations.

Product Specifications

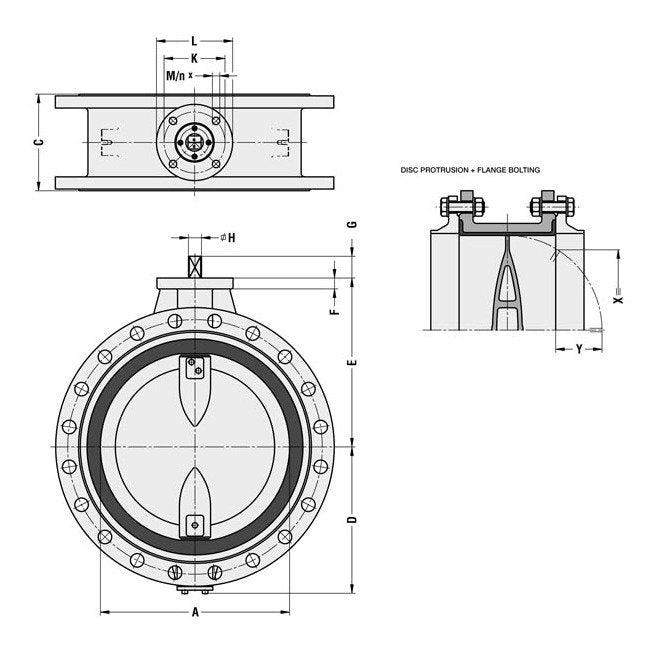

Specifications A

1386 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications C

530 mm

Specifications D

970 mm | 980 mm

Specifications E

955 mm

Specifications F

35 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6

Specifications G

85 mm | 100 mm

Specifications H Diameter

75 mm | 90 mm

Specifications Iso 5211

F30 | F35

Specifications K

356 mm

Specifications L

415 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

31 mm

Specifications N Number Of Holes

Specifications Size

DN1400 - 56" | 1400 mm

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

1700.0 kg

Specifications X

1281 mm

Specifications Y

428 mm
