EVFS Double Flanged Short Valve - ISO Certified

Name: EVFS Double Flanged Short Valve - ISO Certified
Brand: World Wide Metric, Inc.
SKU: VAL-e1ad56
Price: 999.99 USD
Availability: OutOfStock

SKU:VAL-e1ad56

Premium EVFS Double Flanged Short Valve for ISO-compliant operations. Reliable, leak-proof, and versatile for industrial needs.

$999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

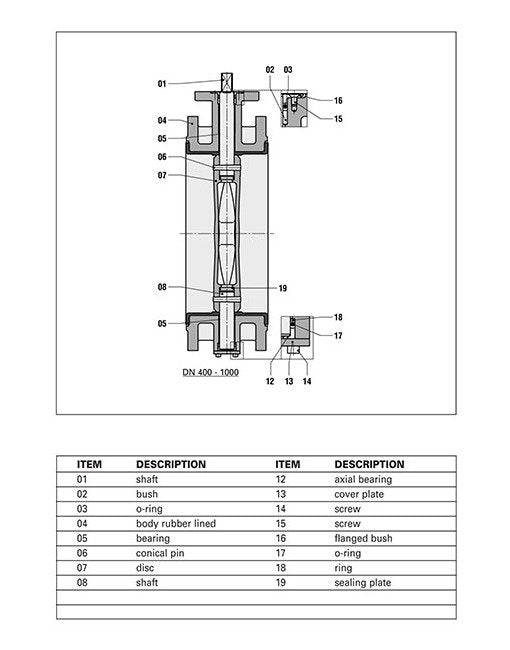

The EVFS Double Flanged Short Valve is a high-performance solution designed to meet ISO 5752 / EN 558 standards. With a robust construction featuring various actuation options and material choices including Ductile Iron and Stainless Steel, this valve ensures reliable performance in isolating and regulating functions. It offers a leak-proof design, multiple type approvals, and seamless installation, making it ideal for industrial applications requiring top-tier durability and functionality.

Product Specifications

Specifications A

436 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications C

222 mm

Specifications D

334 mm

Specifications E

388 mm

Specifications F

25 mm

Specifications Flange Connections

ANSI Class 150 | JIS 10 | JIS 16 | JIS 5 | PN 10 | PN 16 | PN 6

Specifications G

50 mm

Specifications H Diameter

30 mm

Specifications Iso 5211

F14

Specifications K

140 mm

Specifications L

175 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

17 mm

Specifications N Number Of Holes

Specifications Size

DN450 - 18" | 450 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

150.0 kg

Specifications X

376 mm

Specifications Y

107 mm
