The Series EVFS Gear Operated Ductile Iron Butterfly Valve in DN300 size is a robust and versatile valve designed for both isolating and regulating flow applications. Constructed with high-quality materials including ductile iron body, stainless steel shaft, and NBR liner, this valve offers exceptional durability and reliable performance. With compliance to DIN standards and approvals from ABS, DNV, and more, it ensures adherence to industry regulations and quality benchmarks, making it ideal for a wide range of industrial and institutional settings.
Product Specifications

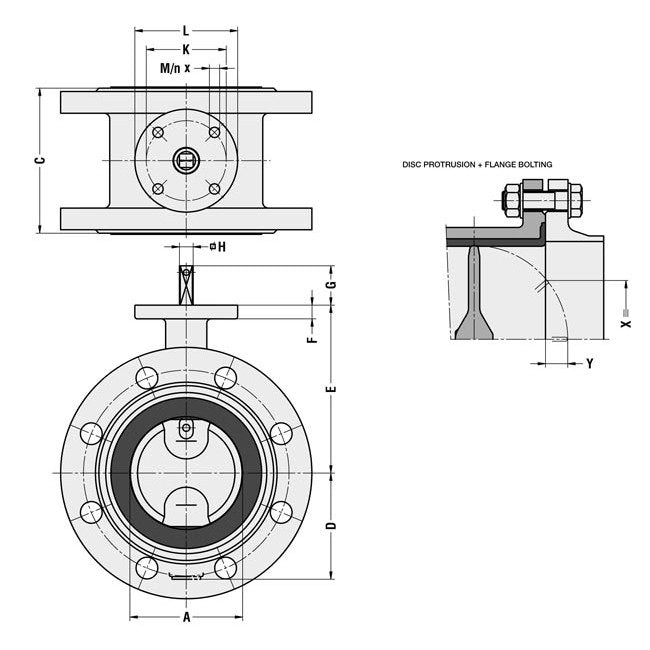

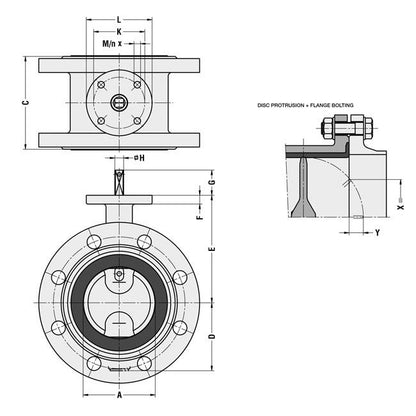

Specifications A
300 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Ductile Iron
Specifications C
178 mm
Specifications D
219 mm
Specifications E
270 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN300 - 12" | 300 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
65.0 kg
Specifications X
242 mm
Specifications Y
61 mm
