EVFS Gear Operated Ductile Iron Butterfly Valve DN600 PN16
EVFS Gear Operated Ductile Iron Butterfly Valve DN600 PN16
SKU:VAL-b0a5ad
Premium EVFS Gear Operated Ductile Iron Butterfly Valve DN600 - Ideal for both isolation and regulation. Meets top industry certifications.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
EVFS Gear Operated Ductile Iron Butterfly Valve DN600 PN16
$789.99
Quantity: 1
Claim Your Seller Account
EVFS Gear Operated Ductile Iron Butterfly Valve DN600 PN16
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EVFS Gear Operated Ductile Iron Butterfly Valve DN600 PN16 is a top-tier solution designed for robust performance and reliability. This valve serves as both an isolating valve and a regulating valve, ensuring precise control and shut off pressure up to 10 bar. With a body material of ductile iron and a stem made of aluminum bronze, this valve guarantees durability and long-term functionality. Certified by ABS, DNV, FM, and more, it meets stringent industry standards, making it ideal for institutional and government applications.
Ready to Grow Without Cash Flow Constraints?

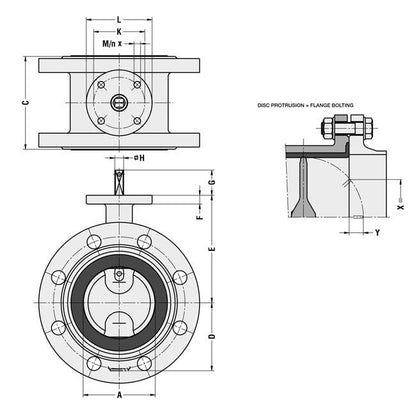

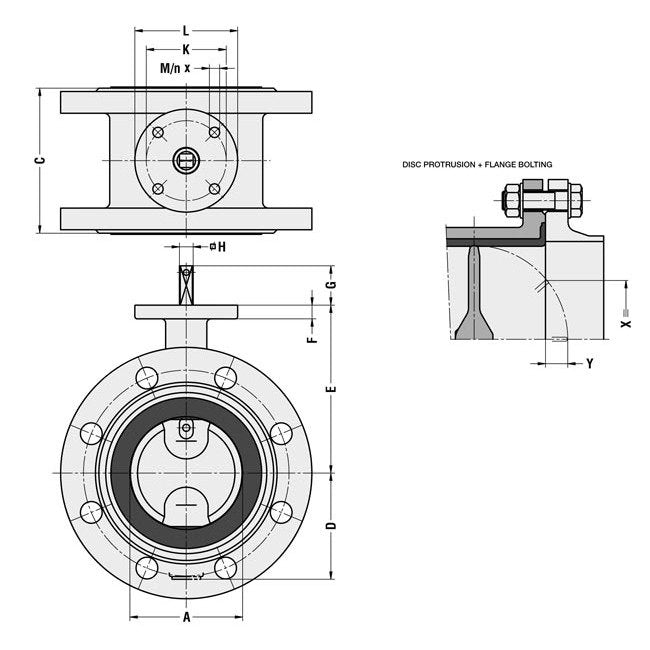

Product Specifications
Specifications A
586 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Ductile Iron
Specifications C
267 mm
Specifications D
426 mm
Specifications E
510 mm
Specifications F
25 mm
Specifications Flange Connections
PN 16
Specifications G
50 mm
Specifications H Diameter
40 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Aluminum Bronze
Specifications Size
DN600 - 24" | 600 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
300.0 kg
Specifications X
522 mm
Specifications Y
160 mm
