The EVMS Butterfly Valve features a Vulcanized Rubber Lining, conforming to ISO 5752/EN 558 standards with a Face-to-Face design. Available in sizes DN350 to DN1000, with manual, electric, pneumatic, or hydraulic actuation options. Body material choices include Ductile Iron, Cast Iron, Carbon Steel, Stainless Steel, or Bronze RG10. Designed for isolating (on/off) and regulating valve functions, it ensures tight shut off and minimal leakage. Approved by DNV, ABS, GL, RIN, NKK, RMRS, and FM F30, this valve is a reliable choice for various applications.

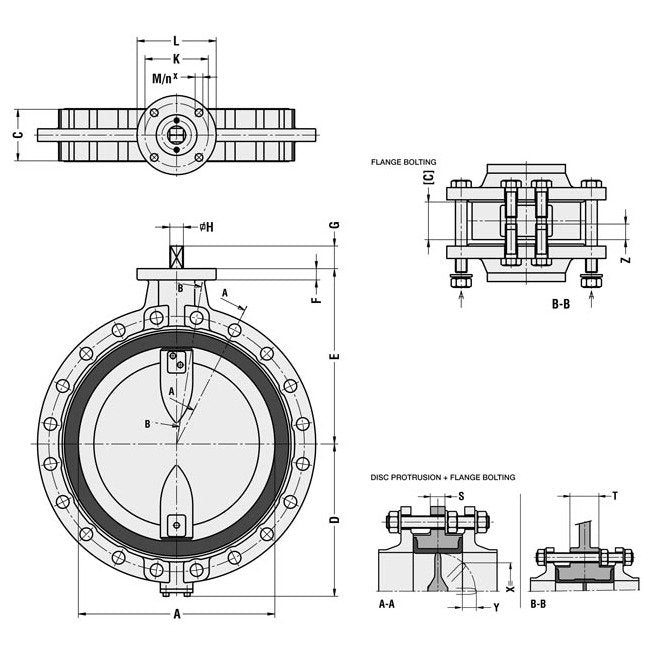

Product Specifications
Specifications A
986 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | DNV | FM | GL | NKK | RIN | RMRS
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications B Diameter
1085 mm
Specifications C
216 mm
Specifications D
685 mm
Specifications E
740 mm
Specifications F
30 mm
Specifications Flange Connections
DIN PN 10 | DIN PN 6
Specifications G
90 mm
Specifications H Diameter
60 mm
Specifications Iso 5211
F25 | F30
Specifications K
254 mm | 298 mm
Specifications L
350 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm | 21 mm
Specifications N Number Of Holes
8
Specifications S
50 mm
Specifications Size
DN1000 - 40"
Specifications T
200 mm
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
670.0 kg
Specifications X
973 mm
Specifications Y
390 mm
Specifications Z At Pn 10
51 mm
Specifications Z At Pn 16
58 mm
Specifications Z At Pn 6
51 mm
