EVMS Mono Flanged Short Valve
EVMS Mono Flanged Short Valve
SKU:VAL-a05e51
Reliable EVMS Mono Flanged Short Valve for precise control and durable shut-off in industrial applications. Compliant with ISO 5752/EN 558 standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
EVMS Mono Flanged Short Valve
$699.99
Quantity: 1
Claim Your Seller Account
EVMS Mono Flanged Short Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EVMS Mono Flanged Short Valve is a high-performance concentric butterfly valve designed for precision control and reliable shut-off in industrial applications. Compliant with ISO 5752/EN 558 standards, the valve offers durable construction with material options including Ductile Iron, Cast Iron, Carbon Steel, Stainless Steel, and Bronze RG10. Available in sizes ranging from DN350 to 1000, this valve features manual, electric, pneumatic, and hydraulic actuation capabilities. With a leakage rate of ISO 5208 Rate A, it ensures bi-directional tight shut off, making it ideal for isolating and regulating flow. Approved by DNV, ABS, GL, RIN, NKK, RMRS, and FM, the EVMS Mono Flanged Short Valve guarantees quality and reliability.

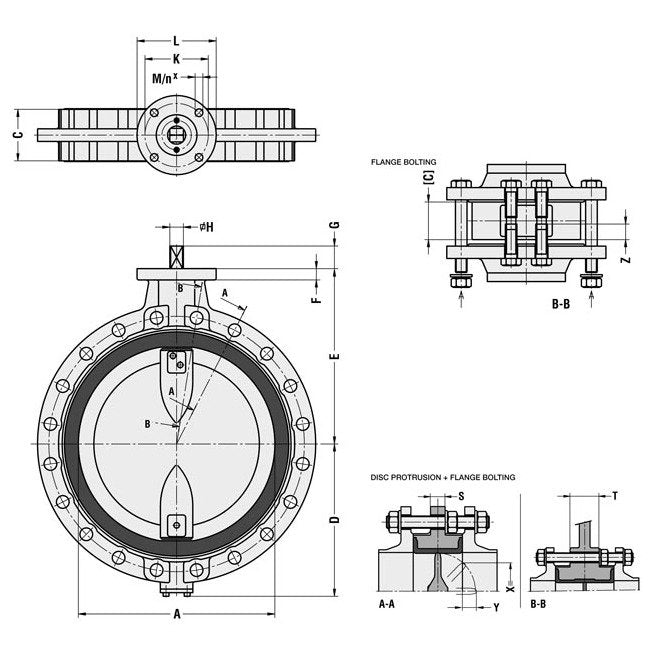

Product Specifications
Specifications A
336 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | DNV | FM | GL | NKK | RIN | RMRS
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications B Diameter
405 mm
Specifications C
78 mm
Specifications D
256 mm
Specifications E
315 mm
Specifications F
15 mm
Specifications Flange Connections
DIN PN 10 | DIN PN 6
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications S
26 mm
Specifications Size
DN350 - 14"
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
45.0 kg
Specifications X
327 mm
Specifications Y
129 mm
