EVMS Mono Flanged Short Valve - Butterfly Valve
EVMS Mono Flanged Short Valve - Butterfly Valve
SKU:VAL-9288ce
High-quality EVMS Mono Flanged Short Valve - Butterfly Valve for industrial use, with ISO standards compliance & multiple actuation options.
Regular price
$3,500.00
Regular price
Sale price
$3,500.00
Unit price
per
Initiate Order
EVMS Mono Flanged Short Valve - Butterfly Valve
$3,500.00
Quantity: 1
Claim Your Seller Account
EVMS Mono Flanged Short Valve - Butterfly Valve
$3,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EVMS Mono Flanged Short Valve is a high-quality concentric butterfly valve designed for industrial applications. With a face-to-face measurement conforming to ISO standards, this valve offers reliable performance. Available in sizes DN350 to DN1000, with various actuation options including manual, electric, pneumatic, and hydraulic, this valve provides flexibility in operation. The body material options range from ductile iron to stainless steel, ensuring durability and corrosion resistance. Additionally, its leakage rate complies with ISO 5208 standards for bi-directional tight shut off, making it suitable for isolating and regulating valve functions. Approved by DNV, ABS, and other regulatory bodies, this valve is a dependable choice for institutional and government buyers.

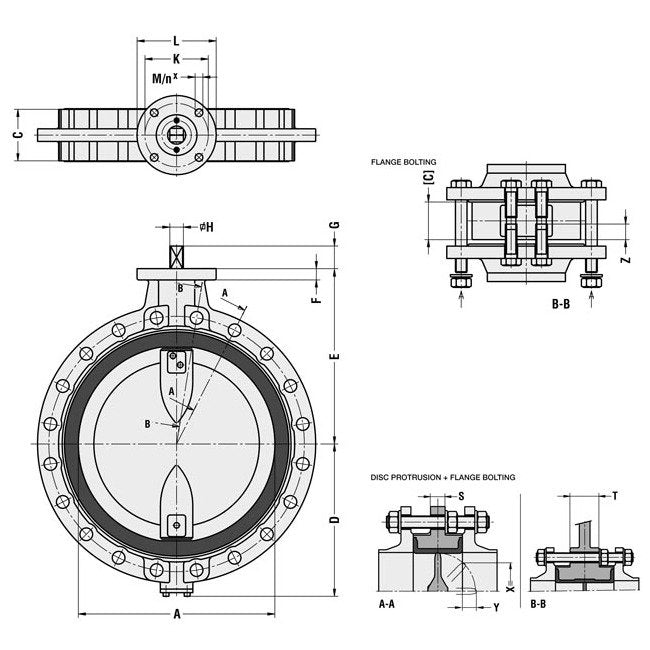

Product Specifications
Specifications A
436 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | DNV | FM | GL | NKK | RIN | RMRS
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications B Diameter
522 mm
Specifications C
114 mm
Specifications D
334 mm
Specifications E
388 mm
Specifications F
25 mm
Specifications Flange Connections
DIN PN 10 | DIN PN 6
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications S
28 mm
Specifications Size
DN450 - 18"
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications T
54 mm
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
100.0 kg
Specifications X
421 mm
Specifications Y
161 mm
