EVMS Mono Flanged Short Valve DN600
EVMS Mono Flanged Short Valve DN600
SKU:VAL-3e263a
Premium EVMS Mono Flanged Short Valve DN600 - Reliable, durable, and versatile for fluid control applications.
Regular price
$880.00
Regular price
Sale price
$880.00
Unit price
per
Initiate Order
EVMS Mono Flanged Short Valve DN600
$880.00
Quantity: 1
Claim Your Seller Account
EVMS Mono Flanged Short Valve DN600
$880.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EVMS Mono Flanged Short Valve DN600 is a high-quality concentric butterfly valve designed for efficient fluid control. With a robust construction featuring materials like GG25 Cast Iron and Duplex Stainless Steel, this valve ensures durability and reliability in demanding applications. It offers versatility with manual, electric, pneumatic, and hydraulic actuation options, making it suitable for various operational requirements. Meeting ISO 5752/EN 558 standards and leakage rate ISO 5208, this valve guarantees bi-directional tight shut off, ideal for isolating and regulating functions.
Product Specifications

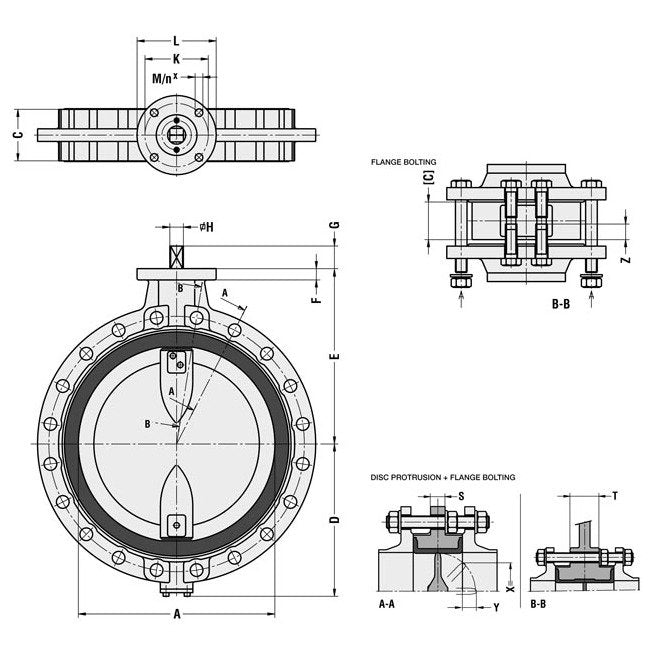

Specifications A
586 mm
Specifications Actuation Possibilities
Electric | Hydraulic | Manual | Pneumatic
Specifications Available Type Approvals
ABS | DNV | FM | GL | NKK | RIN | RMRS
Specifications Body Material
Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel
Specifications B Diameter
672 mm
Specifications C
154 mm
Specifications D
426 mm
Specifications E
510 mm
Specifications F
25 mm
Specifications Flange Connections
DIN PN 10 | DIN PN 6
Specifications G
50 mm
Specifications H Diameter
40 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications S
35 mm
Specifications Size
DN600 - 24"
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications T
76 mm
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
200.0 kg
Specifications X
566 mm
Specifications Y
216 mm
