EVMS Mono Flanged Short Valve with Rubber Lining

Name: EVMS Mono Flanged Short Valve with Rubber Lining
Brand: World Wide Metric, Inc.
SKU: VAL-3cda7d
Price: 1099.99 USD
Availability: OutOfStock

SKU:VAL-3cda7d

Premium EVMS Mono Flanged Short Valve for precise flow control in institutional applications.

$1,099.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EVMS Mono Flanged Short Valve is a high-quality concentric butterfly valve designed for efficient flow regulation and tight shut-off. With a face-to-face dimension compliant with ISO 5752/EN 558, it offers versatile actuation options including manual, electric, pneumatic, and hydraulic. This valve features a durable construction with material choices such as stainless steel and ductile iron, ensuring longevity and reliable performance. Ideal for isolating and regulating applications, this valve meets stringent ISO 5208 standards for bi-directional tight shut off, making it a dependable choice for industrial and institutional settings.

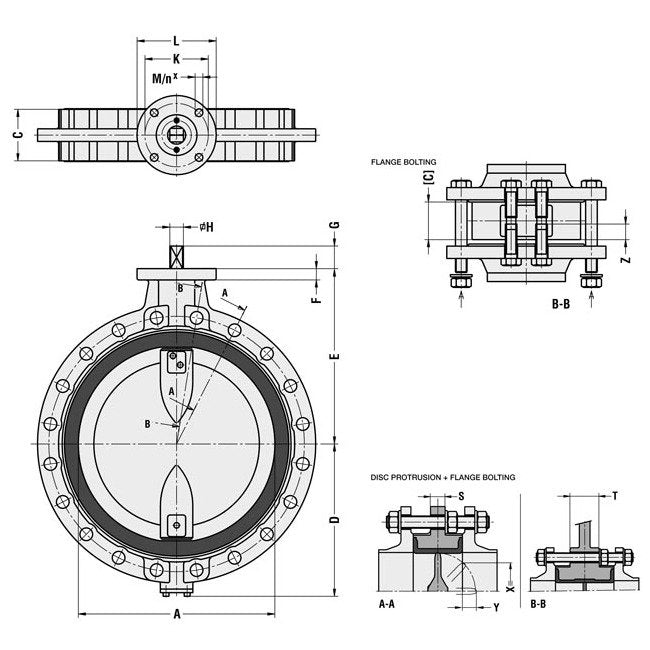

Product Specifications

Specifications A

386 mm

Specifications Actuation Possibilities

Electric | Hydraulic | Manual | Pneumatic

Specifications Available Type Approvals

ABS | DNV | FM | GL | NKK | RIN | RMRS

Specifications Body Material

Bronze RG10 | Carbon Steel | GG25 Cast Iron | GGG40 Ductile Iron | Stainless Steel

Specifications B Diameter

470 mm

Specifications C

102 mm

Specifications D

308 mm

Specifications E

363 mm

Specifications F

25 mm

Specifications Flange Connections

DIN PN 10 | DIN PN 6

Specifications G

50 mm

Specifications H Diameter

30 mm

Specifications Iso 5211

F14

Specifications K

140 mm

Specifications L

175 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM) Special Grade | Ethylene Propylene Diene Monomer (EPDM) Standard Grade | Fluoroelastomer Polymer (FPM) Viton | Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

17 mm

Specifications N Number Of Holes

Specifications S

28 mm

Specifications Size

DN400 - 16"

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications T

43 mm

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

85.0 kg

Specifications X

373 mm

Specifications Y

142 mm

EVMS Mono Flanged Short Valve with Rubber Lining
