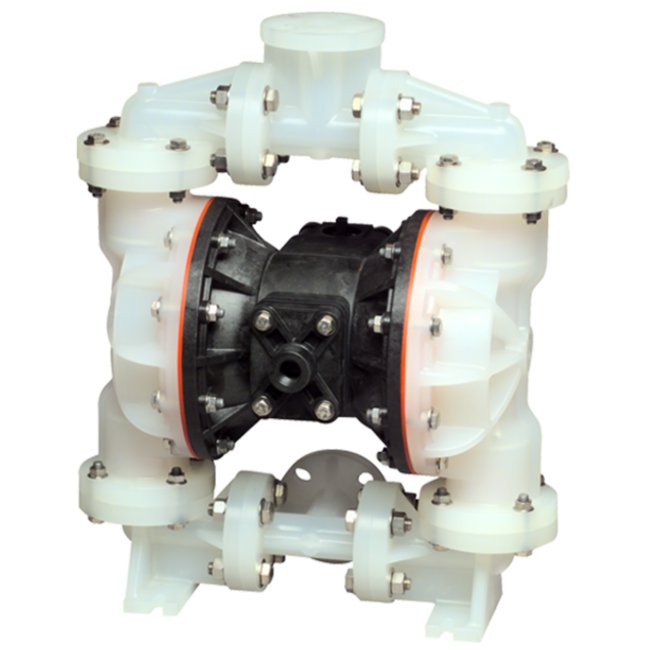

EvolutionX™ 1 Inch Air-Operated Non-Metallic Ball Valve Diaphragm Pump
EvolutionX™ 1 Inch Air-Operated Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-0b1e8d
Upgrade to the EvolutionX™ 1 Inch Pump for efficiency and reliability in diverse applications. Contact us for seamless transition options.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
EvolutionX™ 1 Inch Air-Operated Non-Metallic Ball Valve Diaphragm Pump
$1,499.99
Quantity: 1
Claim Your Seller Account
EvolutionX™ 1 Inch Air-Operated Non-Metallic Ball Valve Diaphragm Pump
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to the EvolutionX™ 1 Inch Air-Operated Non-Metallic Ball Valve Diaphragm Pump, replacing the Sandpiper® S1F. This pump features a PVDF construction, PTFE Santoprene Backup/PTFE elastomers, and a universal porting position. With a max flow rate of 45 gpm, it ensures efficiency and reliability for varied applications. Contact us for seamless transition options.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

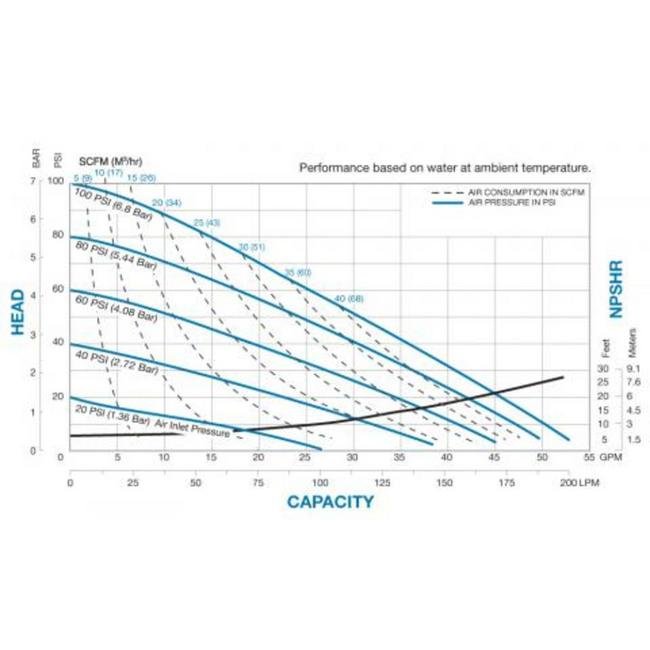

Performance Curves
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code 2B350.i
Specifications Design Level
3
Specifications Displacement Per Stroke
0.17 gal | 0.64 lit
Specifications Elastomers
PTFE Santoprene Backup/PTFE
Specifications Height
21 in | 527.05 mm
Specifications Inlet Size
1" ANSI Flange | PN10 25 mm DIN Flange
Specifications Length
17 in | 432.82 mm
Specifications Max Flow Rate
0 - 45 gpm | 0 - 170 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1" ANSI Flange | PN10 25 mm DIN Flange
Specifications Porting Position
Universal (Fits ANSI and DIN)
Specifications Pump Style
Standard
Specifications Sku
WRS1FB3K2KPUS000SP
Specifications Solids Handling
25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
54 lbs | 24 kg
Specifications Wetted Moc
PVDF
Specifications Width
12 in | 299.97 mm
Category 6
Standard Duty Diaphragm Pumps
