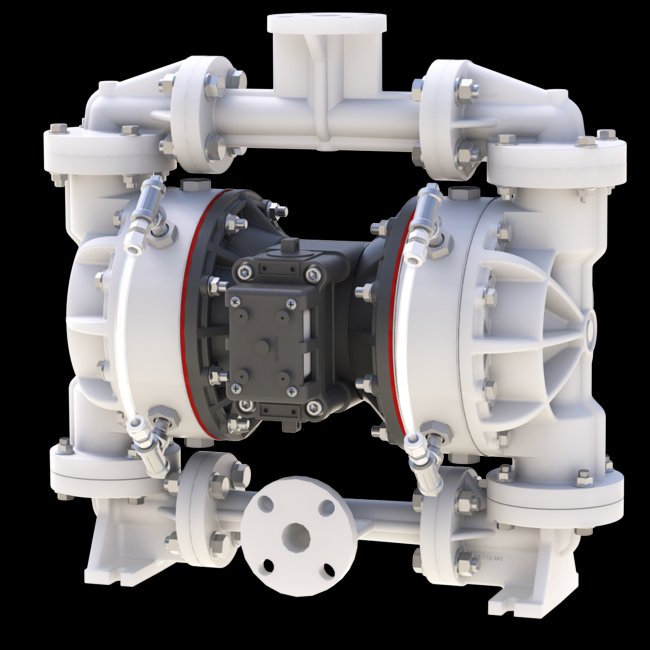

EvolutionX™ 1 Inch Non-Metallic Ball Valve Diaphragm Pump

Name: EvolutionX™ 1 Inch Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-e7f9a0
Price: 1799.99 USD
Availability: OutOfStock

SKU:PRO-e7f9a0

Upgrade to the EvolutionX™ 1 Inch Non-Metallic Ball Valve Diaphragm Pump for superior performance and reliability.

$1,799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade to the EvolutionX™ 1 Inch Non-Metallic Ball Valve Diaphragm Pump, the next-generation solution replacing the Sandpiper® S1F series. This air-powered double diaphragm pump features a 1" ANSI Flange inlet and outlet, with a robust polypropylene construction that ensures reliability and longevity. With a max flow rate of 45 gpm and a containment duty design for enhanced safety, this pump is ideal for water, wastewater, sump, and utility applications. Discover improved performance and efficiency with the EvolutionX™ series.

Product Specifications

Curves 0

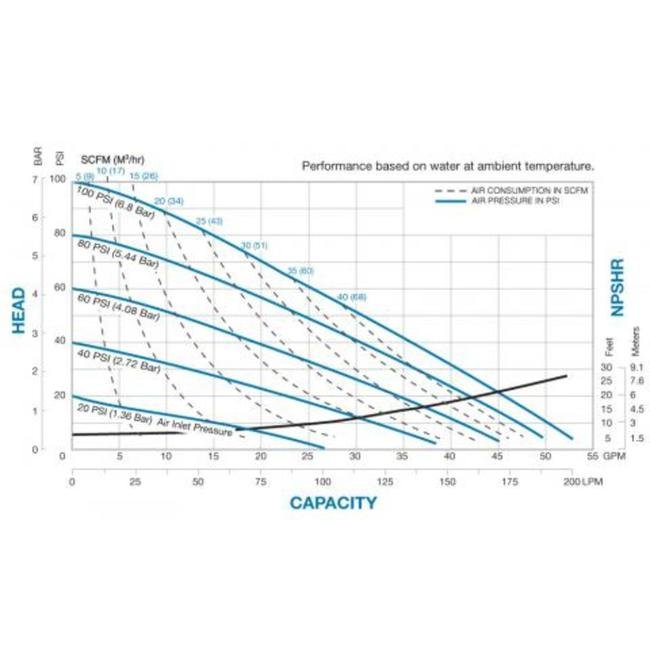

Performance Curves

Specifications Check Valve Seat

Polypropylene

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Displacement Per Stroke

0.17 gal | 0.64 lit

Specifications Elastomers

PTFE Pumping, PTFE-Santoprene Backup Driver/PTFE

Specifications Height

21 in | 527.05 mm

Specifications Inlet Size

1" ANSI Flange | PN10 25 mm DIN Flange

Specifications Length

22 in | 552.45 mm

Specifications Max Flow Rate

0 - 45 gpm | 0 - 170 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1" ANSI Flange | PN10 25 mm DIN Flange

Specifications Porting Position

Universal (Fits ANSI and DIN)

Specifications Pump Style

Containment Duty with Visual Leak Detection

Specifications Sku

WRS1FB3P3PPUV000SP

Specifications Solids Handling

25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

48 lbs | 22 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

12 in | 306.39 mm
