EvolutionX™ 1 Inch Non-Metallic Diaphragm Ball Valve Pump
EvolutionX™ 1 Inch Non-Metallic Diaphragm Ball Valve Pump
SKU:PRO-1ad35b
Enhanced EvolutionX™ 1 Inch Non-Metallic Ball Valve Pump, ideal for standard duty fluid transfer. Upgrade now!
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
EvolutionX™ 1 Inch Non-Metallic Diaphragm Ball Valve Pump
$899.99
Quantity: 1
Claim Your Seller Account
EvolutionX™ 1 Inch Non-Metallic Diaphragm Ball Valve Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

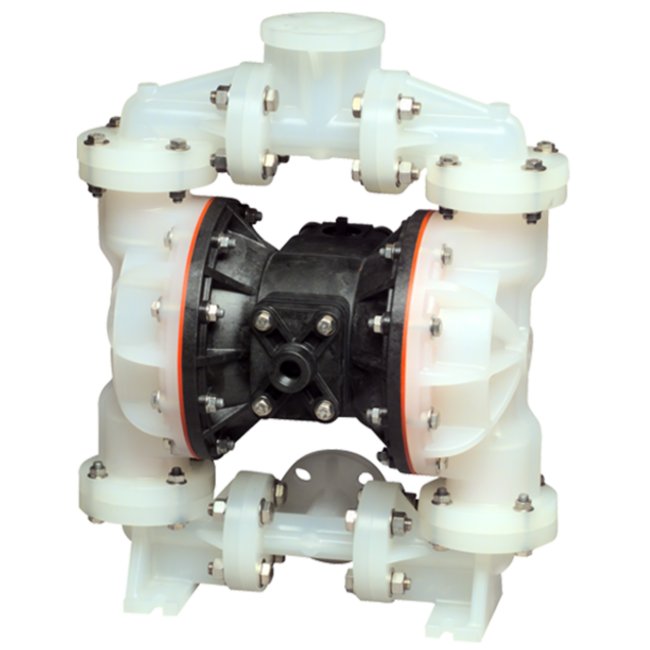

Upgrade to the EvolutionX™ 1 Inch Non-Metallic Diaphragm Ball Valve Pump, the latest innovation replacing Sandpiper® S1F models. This air-powered double diaphragm pump features a 1" ANSI Flange inlet/outlet size, PVDF construction, and Santoprene elastomers for durability and reliability in standard duty applications. With a max flow rate of 45 gpm and a universal porting position, it ensures efficient fluid handling with minimal maintenance. Submit an RFQ or explore the SPE10BKPR0RK000UC1 for modern pumping solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

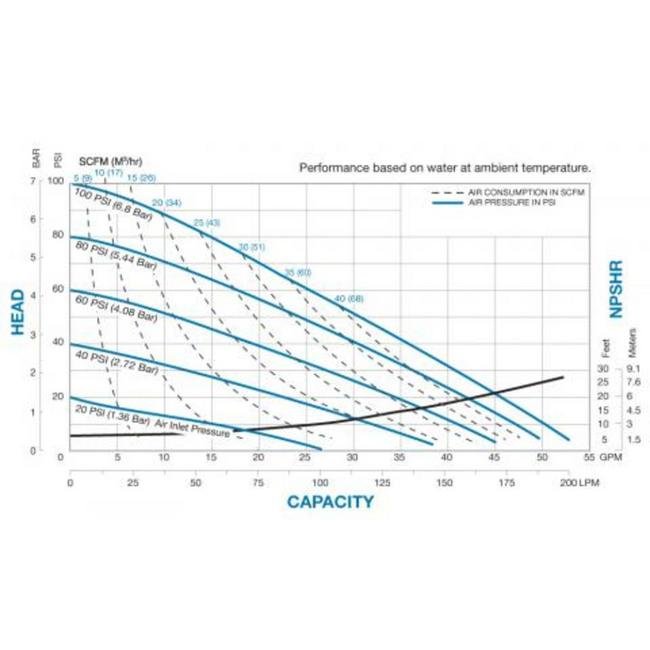

Performance Curves
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
3
Specifications Displacement Per Stroke
0.17 gal | 0.64 lit
Specifications Elastomers
Santoprene/Santoprene
Specifications Height
21 in | 527.05 mm
Specifications Inlet Size
1" ANSI Flange | PN10 25 mm DIN Flange
Specifications Length
17 in | 432.82 mm
Specifications Max Flow Rate
0 - 45 gpm | 0 - 170 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1" ANSI Flange | PN10 25 mm DIN Flange
Specifications Porting Position
Universal (Fits ANSI and DIN)
Specifications Pump Style
Standard
Specifications Sku
WRS1FB3K1KPUS000SP
Specifications Solids Handling
25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
54 lbs | 24 kg
Specifications Wetted Moc
PVDF
Specifications Width
12 in | 299.97 mm
Category 6
Standard Duty Diaphragm Pumps
