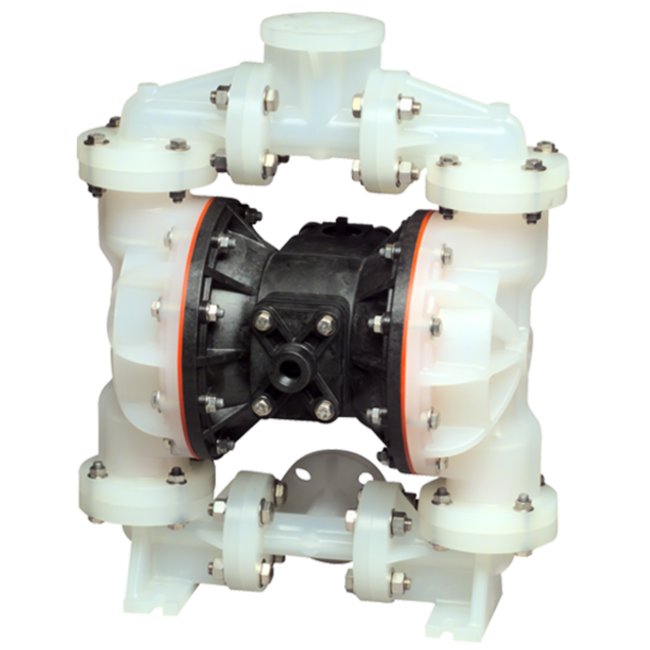

EvolutionX 1 Inch Non-Metallic Top Discharge Diaphragm Pump

Name: EvolutionX 1 Inch Non-Metallic Top Discharge Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-2bcda3
Price: 699.99 USD
Availability: OutOfStock

SKU:PRO-2bcda3

Upgrade to EvolutionX 1 Inch Non-Metallic Top Discharge Diaphragm Pump for efficient, reliable pumping performance.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your pumping system with the EvolutionX 1 Inch Non-Metallic Top Discharge Diaphragm Pump. Crafted with superior conductive poly materials, this pump offers efficient solids handling up to 0.25 inches. With a displacement per stroke of 0.19 gallons, it delivers a maximum flow rate of 0.19 gpm. Ideal for standard duty applications in water, wastewater, and utility sectors.

Product Specifications

Curves 0

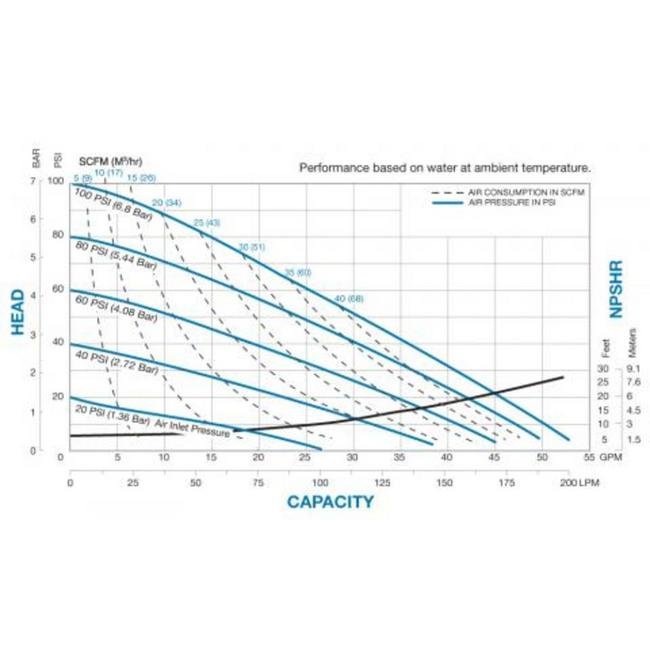

Performance Curves

Specifications Check Valve Seat

Polypropylene

Specifications Customs Code

HS Code 84131900

Specifications Displacement Per Stroke

0.19 gal | 0.72 lit

Specifications Height

21 in | 527.05 mm

Specifications Inlet Size

1 Universal Flange in | 25 Universal Flange mm

Specifications Length

17 in | 432.82 mm

Specifications Max Flow Rate

0.19 gpm | 11.40 gph | 0.72 lpm

Specifications Non Wetted Material

Conductive Polypropylene

Specifications Porting Position

Top Discharge

Specifications Sku

WRS1FB3C2PCUS600SP

Specifications Solids Handling

0.25 in | 6 mm

Specifications Weight

39 lbs | 17.69 kg

Specifications Wetted Moc

Conductive Poly

Specifications Width

13 in | 333.25 mm

Category 6

Standard Duty Diaphragm Pumps
