EvolutionX 1" Non-Metallic Ball Valve Diaphragm Pump
EvolutionX 1" Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-cfba09
Enhance your operations with the EvolutionX 1" Non-Metallic Ball Valve Diaphragm Pump. Maximum durability and performance for waste water handling.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
EvolutionX 1" Non-Metallic Ball Valve Diaphragm Pump
$2,499.99
Quantity: 1
Claim Your Seller Account
EvolutionX 1" Non-Metallic Ball Valve Diaphragm Pump
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

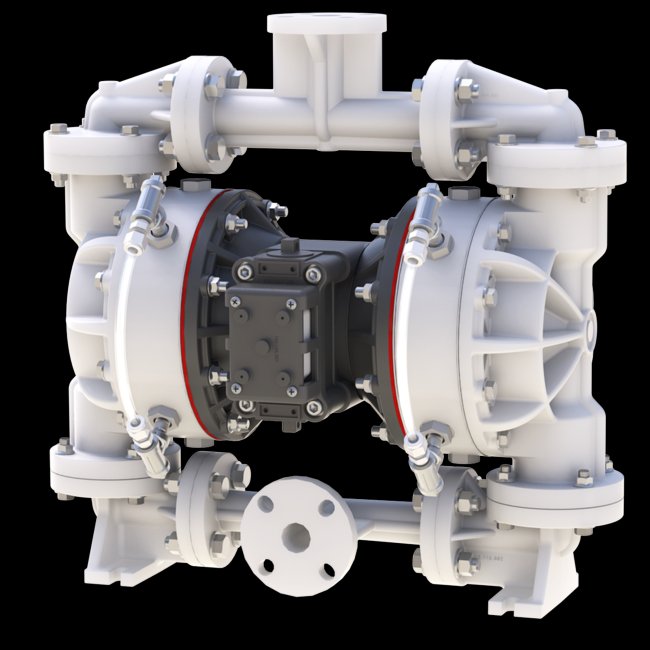

Upgrade to the EvolutionX 1" Non-Metallic Ball Valve Diaphragm Pump, designed for superior performance and durability. This air-powered double diaphragm pump features a 1" ANSI Flange inlet and outlet, a PVDF check valve seat, and PTFE elastomers for efficient pumping. With a maximum flow rate of 45 gpm and a containment duty design, this pump ensures reliable operation for waste water applications.
Product Specifications
Curves 0

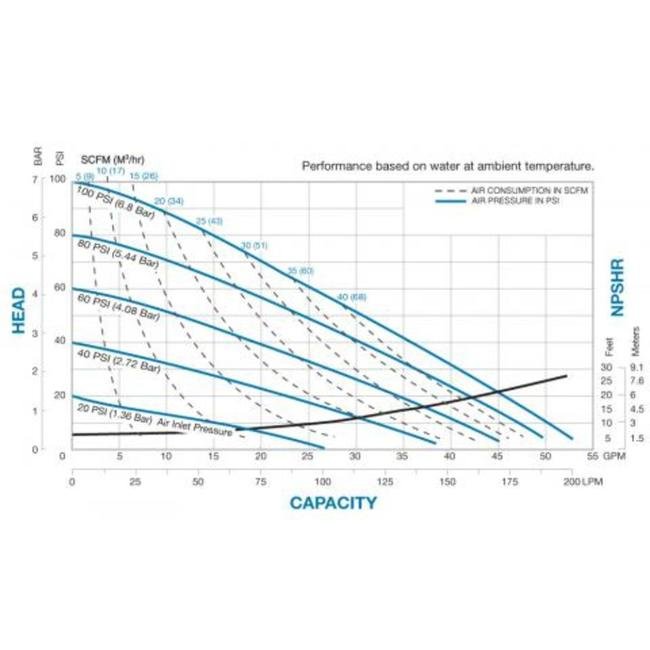

Performance Curves
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code 2B350.i
Specifications Design Level
3
Specifications Displacement Per Stroke
0.17 gal | 0.64 lit
Specifications Elastomers
PTFE Pumping, PTFE-Santoprene Backup Driver/PTFE
Specifications Height
21 in | 527.05 mm
Specifications Inlet Size
1" ANSI Flange | PN10 25 mm DIN Flange
Specifications Length
22 in | 552.45 mm
Specifications Max Flow Rate
0 - 45 gpm | 0 - 170 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1" ANSI Flange | PN10 25 mm DIN Flange
Specifications Porting Position
Universal (Fits ANSI and DIN)
Specifications Pump Style
Containment Duty with Visual Leak Detection
Specifications Sku
WRS1FB3K3KPUV000SP
Specifications Solids Handling
25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
64 lbs | 29 kg
Specifications Wetted Moc
PVDF
Specifications Width
12 in | 306.39 mm
Category 6
Standard Duty Diaphragm Pumps
