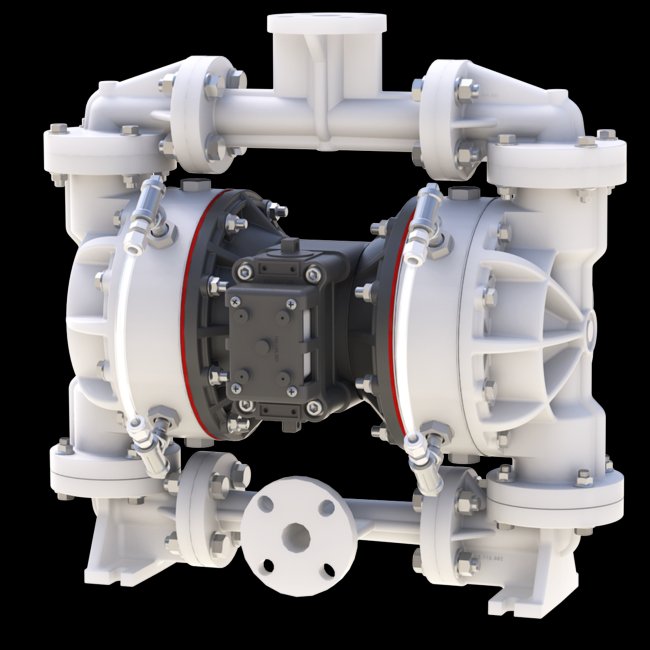

EvolutionXâ¢ 1" Non-Metallic Top Discharge Ball Valve Diaphragm Pump

Name: EvolutionXâ¢ 1" Non-Metallic Top Discharge Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-c15b15
Price: 1899.99 USD
Availability: OutOfStock

SKU:PRO-c15b15

Enhance your operations with the EvolutionXâ¢ 1" Non-Metallic Diaphragm Pump for efficient and safe waste water handling.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your pumping system with the EvolutionXâ¢ 1" Non-Metallic Ball Valve Diaphragm Pump, designed to handle standard duty waste water applications with precision and efficiency. With a durable PVDF construction and Santoprene elastomers, this pump ensures reliable performance and easy maintenance. The containment duty design and visual leak detection feature provide added safety, making it suitable for a wide range of industrial and institutional applications. Experience seamless operation and exceptional performance with the EvolutionXâ¢ series.

Product Specifications

Curves 0

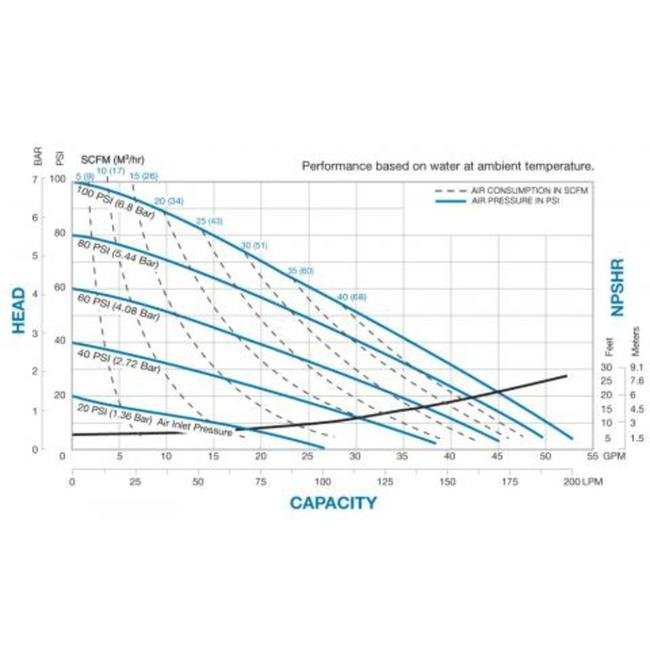

Performance Curves

Specifications Check Valve Seat

PVDF

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Displacement Per Stroke

0.17 gal | 0.64 lit

Specifications Elastomers

Santoprene Pumping/Santoprene

Specifications Height

21 in | 527.05 mm

Specifications Inlet Size

1" ANSI Flange | PN10 25 mm DIN Flange

Specifications Length

22 in | 552.45 mm

Specifications Max Flow Rate

0 - 45 gpm | 0 - 170 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1" ANSI Flange | PN10 25 mm DIN Flange

Specifications Porting Position

Universal (Fits ANSI and DIN)

Specifications Pump Style

Containment Duty with Visual Leak Detection

Specifications Sku

WRS1FB3K4KPUV000SP

Specifications Solids Handling

25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

64 lbs | 29 kg

Specifications Wetted Moc

PVDF

Specifications Width

12 in | 306.39 mm

Category 6

Standard Duty Diaphragm Pumps

EvolutionXâ¢ 1" Non-Metallic Top Discharge Ball Valve Diaphragm Pump
