The EXAIR 1100-PEEK Super Air Nozzle is a top-performing solution for blowoff, drying, and cooling needs in a wide range of applications. Crafted from Polyetheretherketone (PEEK) material, this engineered nozzle delivers exceptional force with reduced air consumption, minimizing noise levels by up to 10 dBA. Its aerodynamic design ensures precise air flow to enhance production efficiency and safety. With an average noise reduction of 10 dBA, compliance with OSHA noise level and pressure requirements, and compatibility with various applications, this nozzle surpasses industry standards for performance and durability.
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
14 SCFM | 396 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
13 oz | 368 g
Specifications How Air Nozzles Work

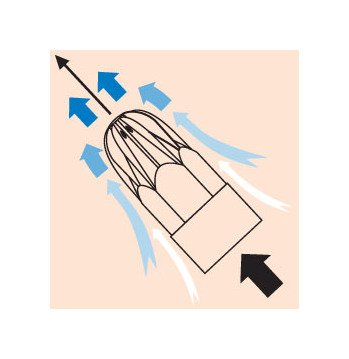

Air Nozzles use the Coanda effect to amplify compressed air flow up to 25 times or more. As illustrated on the right, compressed air (black arrows) is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
Specifications Inlet
1/4 FNPT
Specifications Material
Polyetheretherketone (PEEK) (Plastic)
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Selecting The Right Air Nozzle
EXAIR manufactures a wide selection of Air Nozzles and Jets, which are divided into two groups. The first group includes Air Nozzles and Jets that deliver force up to 22 ounces (624 grams) and are suitable for most applications. The second group includes Air Nozzles that produce high force up to 23 lbs (10.43 kg) where additional reach and force are required.Type 303 Stainless Steel - high temperatures and corrosive environments. Max temp 800°F (426°C)Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)Brass - general purpose applications. Max temp 400°F (204°C)Zinc Aluminum Alloy - general purpose applications. Max temp 250°F (121°C)PEEK - replaces metals in harsh environments. Offers chemical resistance, non-marring. Max temp 320°F (160°C)
Specifications Sound Level
74 dBA
