EXAIR 1100 Super Air Nozzle - High Performance Air Blower
EXAIR 1100 Super Air Nozzle - High Performance Air Blower
SKU:AIR-1e6e0a
Maximize efficiency & safety with the EXAIR 1100 Super Air Nozzle – perfect for industrial air applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
EXAIR 1100 Super Air Nozzle - High Performance Air Blower
$99.99
Quantity: 1
Claim Your Seller Account
EXAIR 1100 Super Air Nozzle - High Performance Air Blower
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EXAIR 1100 Super Air Nozzle is an exceptional solution for blowoff, drying, and cooling needs in industrial settings. With its aerodynamic design, this engineered nozzle focuses airflow to a single point, providing a powerful impact while reducing air consumption and noise levels significantly. Compressed air is ejected safely through strategically positioned nozzles, ensuring optimal performance and compliance with OSHA safety regulations. Manufactured with Zinc Aluminum alloy, this Super Air Nozzle offers durability and high efficiency, making it an excellent choice for applications requiring precision and reliability.
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
14 SCFM | 396 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
13 oz | 368 g
Specifications How Air Nozzles Work

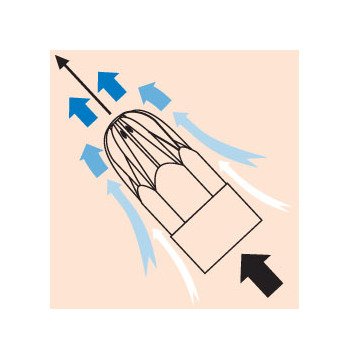

Air Nozzles use the Coanda effect to amplify compressed air flow up to 25 times or more. As illustrated on the right, compressed air (black arrows) is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
Specifications Inlet
1/4 FNPT
Specifications Material
Zinc Aluminum alloy
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Selecting The Right Air Nozzle

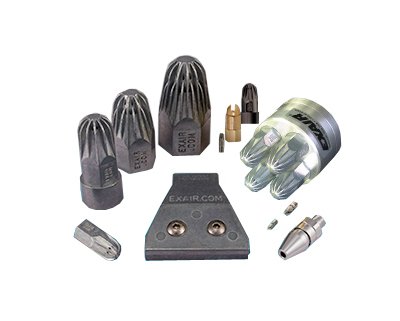

EXAIR manufactures a wide selection of Air Nozzles and Jets, which are divided into two groups. The first group includes Air Nozzles and Jets that deliver force up to 22 ounces (624 grams) and are suitable for most applications. The second group includes Air Nozzles that produce high force up to 23 lbs (10.43 kg) where additional reach and force are required.Type 303 Stainless Steel - high temperatures and corrosive environments. Max temp 800°F (426°C)Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)Brass - general purpose applications. Max temp 400°F (204°C)Zinc Aluminum Alloy - general purpose applications. Max temp 250°F (121°C)PEEK - replaces metals in harsh environments. Offers chemical resistance, non-marring. Max temp 320°F (160°C)
Specifications Sound Level
74 dBA
