EXAIR 1101 Super Air Nozzle

Name: EXAIR 1101 Super Air Nozzle
Brand: Exair LLC
SKU: AIR-c6bff6
Price: 49.99 USD
Availability: OutOfStock

SKU:AIR-c6bff6

Award-winning Super Air Nozzle for powerful blowoff, drying & cooling. Reduces air consumption & noise. OSHA compliant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EXAIR 1101 Super Air Nozzle is an award-winning solution designed for high-performance blowoff, drying, and cooling applications. Engineered with an aerodynamic design, this Super Air Nozzle focuses the air output to a precise point, delivering a powerful force while significantly reducing air consumption and noise levels. The innovative airflow design uses the Coanda effect to amplify the compressed air flow by up to 25 times, resulting in a high-volume blast of air with minimal consumption. With select material options available for varying environments, this nozzle offers improved safety, production efficiency, and cost savings. Meets OSHA noise and pressure requirements, ensuring a safe and compliant solution.

Product Specifications

Specifications Advantages

Specifications Air Consumption

14 SCFM | 396 SLPM

Specifications Applications

Specifications Force

13 oz | 368 g

Specifications How Air Nozzles Work

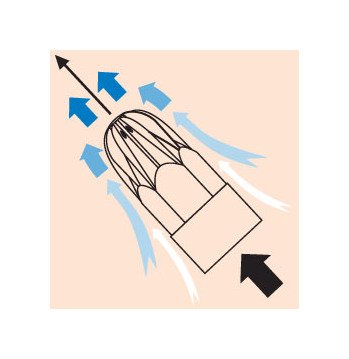

Air Nozzles use the Coanda effect to amplify compressed air flow up to 25 times or more. As illustrated on the right, compressed air (black arrows) is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

Specifications Inlet

1/4 MNPT

Specifications Material

Zinc Aluminum alloy

Specifications Note

Force measured at 12" (305 mm) from target

Specifications Pressure

80 psig | 5.5 bar

Specifications Selecting The Right Air Nozzle

EXAIR manufactures a wide selection of Air Nozzles and Jets, which are divided into two groups. The first group includes Air Nozzles and Jets that deliver force up to 22 ounces (624 grams) and are suitable for most applications. The second group includes Air Nozzles that produce high force up to 23 lbs (10.43 kg) where additional reach and force are required.Type 303 Stainless Steel - high temperatures and corrosive environments. Max temp 800°F (426°C)Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)Brass - general purpose applications. Max temp 400°F (204°C)Zinc Aluminum Alloy - general purpose applications. Max temp 250°F (121°C)PEEK - replaces metals in harsh environments. Offers chemical resistance, non-marring. Max temp 320°F (160°C)

Specifications Sound Level

74 dBA

EXAIR 1101 Super Air Nozzle
