EXAIR 1101SS Super Air Nozzle, Stainless Steel

EXAIR 1101SS Super Air Nozzle, Stainless Steel

SKU:AIR-0c684e

Experience superior blowoff and cooling with the EXAIR 1101SS Super Air Nozzle, reducing noise and air consumption for optimized performance.

Regular price $99.99
Regular price Sale price $99.99
Sale

Initiate Order

EXAIR 1101SS Super Air Nozzle, Stainless Steel

EXAIR 1101SS Super Air Nozzle, Stainless Steel

$99.99

Quantity: 1

Claim Your Seller Account

EXAIR 1101SS Super Air Nozzle, Stainless Steel

EXAIR 1101SS Super Air Nozzle, Stainless Steel

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The EXAIR 1101SS Super Air Nozzle is a top-performing solution ideal for blowoff, drying, and cooling applications. Crafted from durable 316 Stainless Steel, this aerodynamically engineered nozzle delivers a concentrated, powerful airflow while significantly reducing air consumption and noise levels. Its innovative design ensures the air is always ejected safely, meeting OSHA pressure requirements. With a force of 13 oz at 80 psig, this nozzle offers enhanced productivity, improved safety, and reduced compressed air costs, making it a reliable choice for industrial settings.

Product Specifications

Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
14 SCFM | 396 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
13 oz | 368 g
Specifications How Air Nozzles Work

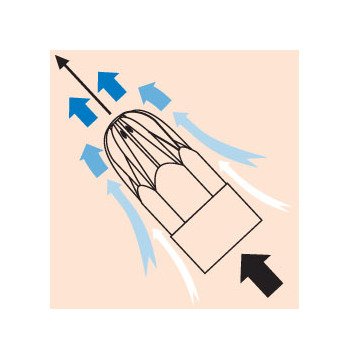

Air Nozzles use the Coanda effect to amplify compressed air flow up to 25 times or more. As illustrated on the right, compressed air (black arrows) is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
Specifications Inlet
1/4 MNPT
Specifications Material
316 Stainless Steel
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Selecting The Right Air Nozzle
EXAIR manufactures a wide selection of Air Nozzles and Jets, which are divided into two groups. The first group includes Air Nozzles and Jets that deliver force up to 22 ounces (624 grams) and are suitable for most applications. The second group includes Air Nozzles that produce high force up to 23 lbs (10.43 kg) where additional reach and force are required.Type 303 Stainless Steel - high temperatures and corrosive environments. Max temp 800°F (426°C)Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)Brass - general purpose applications. Max temp 400°F (204°C)Zinc Aluminum Alloy - general purpose applications. Max temp 250°F (121°C)PEEK - replaces metals in harsh environments. Offers chemical resistance, non-marring. Max temp 320°F (160°C)
Specifications Sound Level
74 dBA
