EXAIR 1109SS-NPT Pico Super Air Nozzle
EXAIR 1109SS-NPT Pico Super Air Nozzle
SKU:AIR-23dc98
Get precise, powerful airflow with the EXAIR 1109SS-NPT Pico Super Air Nozzle. Improve efficiency and reduce costs with its focused performance.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
EXAIR 1109SS-NPT Pico Super Air Nozzle
$65.99
Quantity: 1
Claim Your Seller Account
EXAIR 1109SS-NPT Pico Super Air Nozzle
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EXAIR 1109SS-NPT Pico Super Air Nozzle is a top-tier solution for precise air blowoffs, producing a highly focused blast of airflow with a diameter of 1.3" at 6" distance, ensuring targeted performance. Made of durable 316 Stainless Steel, it operates at 80 psig pressure, consuming only 4.9 SCFM of air while delivering a force of 5.0 oz. This nozzle offers a noise level of 68 dBA and is engineered to meet OSHA safety regulations, providing improved blowoff performance, enhanced production efficiency, and reduced compressed air costs. Ideal for applications like chip removal, part cleaning, and cooling, this air nozzle delivers exceptional reliability and performance.
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
4.9 SCFM | 139 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
5.0 oz | 141.7 g
Specifications How Air Nozzles Work

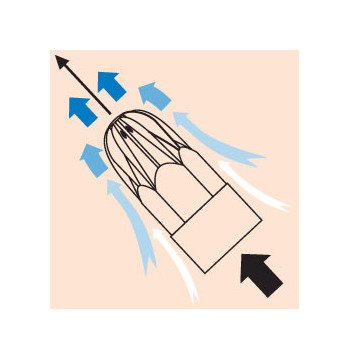

Air Nozzles use the Coanda effect to amplify compressed air flow up to 25 times or more. As illustrated on the right, compressed air (black arrows) is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.
Specifications Inlet
1/8 MNPT
Specifications Material
316 Stainless Steel
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Selecting The Right Air Nozzle
EXAIR manufactures a wide selection of Air Nozzles and Jets, which are divided into two groups. The first group includes Air Nozzles and Jets that deliver force up to 22 ounces (624 grams) and are suitable for most applications. The second group includes Air Nozzles that produce high force up to 23 lbs (10.43 kg) where additional reach and force are required.Type 303 Stainless Steel - high temperatures and corrosive environments. Max temp 800°F (426°C)Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)Brass - general purpose applications. Max temp 400°F (204°C)Zinc Aluminum Alloy - general purpose applications. Max temp 250°F (121°C)PEEK - replaces metals in harsh environments. Offers chemical resistance, non-marring. Max temp 320°F (160°C)
Specifications Sound Level
68 dBA
