EXAIR 120021 Super Air Amplifier - Low Noise Amplification System

Name: EXAIR 120021 Super Air Amplifier - Low Noise Amplification System
Brand: Exair LLC
SKU: SUP-a2bbd2
Price: 249.99 USD
Availability: OutOfStock

SKU:SUP-a2bbd2

Experience amplified airflow efficiency with the EXAIR 120021 Super Air Amplifier - the perfect compact and noise-reducing solution for various applications.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

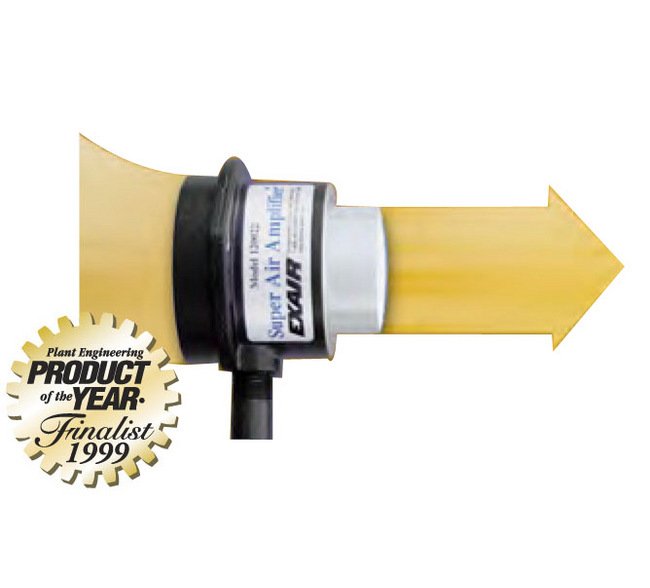

The EXAIR 120021 Super Air Amplifier is engineered with a patented design, ensuring precise airflow release for optimal performance. Delivering a high velocity outlet flow while maintaining whisper-quiet operation at 72 dBA, this air amplifier offers exceptional amplification ratios. With various shim options for customization, this compact, maintenance-free unit is ideal for applications requiring clean, efficient air distribution without electrical requirements. With industry-leading features like instant on/off operation and compliance with OSHA pressure and noise regulations, the Super Air Amplifier is a reliable, energy-efficient solution for diverse air circulation needs in institutional and industrial settings.

Product Specifications

Specifications Advantages

Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet

Specifications Air Consumption

8.1 SCFM | 229 SLPM

Specifications Air Volume At 6 In 152 Mm

436 SCFM | 12339 SLPM

Specifications Air Volume At Outlet

146 SCFM | 4132 SLPM

Specifications Amplification

18 Ratio

Specifications Applications

Specifications Corrosive Applications

Specifications Dimension B

0.94 in | 24 mm

Specifications Dimension F

0.27 in | 7 mm

Specifications Dimension G

0.21 in | 5 mm

Specifications Dimension H

0.75 in | 19 mm

Specifications Dimension J

1.22 in | 31 mm

Specifications Dimension K

2.88 in | 73 mm

Specifications Dimension L

0.59 in | 15 mm

Specifications Efficiency

High

Specifications Flow Adjustment

With Shims

Specifications Housing Length

1.50 in | 38 mm

Specifications Inside Diameter

0.84 in | 21 mm

Specifications Mounting Flange

Yes

Specifications Note

Tested with .003" (0.08 mm) shim.

Specifications Outlet Diameter

1-1/4 in | 32 mm

Specifications Outside Diameter

2.40 in | 61 mm

Specifications Overall Length

3.03 in | 77 mm

Specifications Pressure

80 psig | 5.5 bar

Specifications Sound Level

72 dBA

Specifications Temperature Rating

275 ºF | 135 ºC

Specifications Thread Size

1/4 in

Specifications Thread Type

NPT
