EXAIR 120022 Sound Level Super Air Amplifier - 72 dBA
EXAIR 120022 Sound Level Super Air Amplifier - 72 dBA
SKU:SUP-7bcb5f
Patented design Super Air Amplifier - 72 dBA, High Efficiency, OSHA Compliant, Maintenance-Free
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
EXAIR 120022 Sound Level Super Air Amplifier - 72 dBA
$289.99
Quantity: 1
Claim Your Seller Account
EXAIR 120022 Sound Level Super Air Amplifier - 72 dBA
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

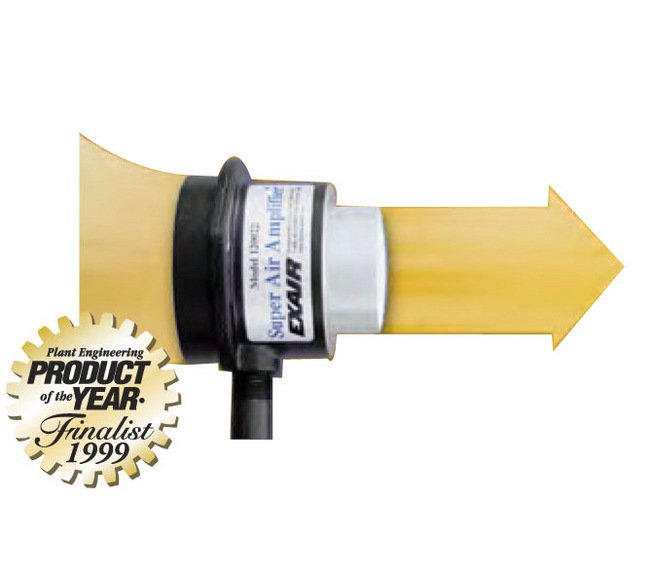

Enhance air amplification and noise reduction with the EXAIR 120022 Super Air Amplifier. Featuring patented design for precise airflow control, this amplifier delivers a constant high-velocity outlet flow with minimal sound levels. Adjustable shims allow for customization of air volume and force. With a compact, lightweight design and no moving parts, it offers a maintenance-free solution ideal for various applications. Experience efficiency, quiet operation, and OSHA compliance in one powerful unit.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet
Specifications Air Consumption
15.5 SCFM | 439 SLPM
Specifications Air Volume At 6 In 152 Mm
1023 SCFM | 28951 SLPM
Specifications Air Volume At Outlet
341 SCFM | 9650 SLPM
Specifications Amplification
22 Ratio
Specifications Applications
Clean Machined Parts | Cool Hot Parts | Distribute Heat in Molds/Ovens | Dry Wet Parts | Dust Collection | Exhaust Tank Fumes | Vent Welding Smoke | Ventilate Confined Areas
Specifications Corrosive Applications
No
Specifications Dimension B
1.69 in | 43 mm
Specifications Dimension F
0.27 in | 7 mm
Specifications Dimension G
0.25 in | 6 mm
Specifications Dimension H
0.75 in | 19 mm
Specifications Dimension J
2 in | 51 mm
Specifications Dimension K
3 in | 76 mm
Specifications Dimension L
0.62 in | 16 mm
Specifications Efficiency
High
Specifications Flow Adjustment
With Shims
Specifications Housing Length
2.95 in | 75 mm
Specifications Inside Diameter
1.64 in | 42 mm
Specifications Mounting Flange
Yes
Specifications Note
Tested with .003" (0.08 mm) shim.
Specifications Outlet Diameter
2 in | 51 mm
Specifications Outside Diameter
3.58 in | 91 mm
Specifications Overall Length
4.14 in | 105 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
72 dBA
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Thread Size
3/8 in
Specifications Thread Type
NPT
