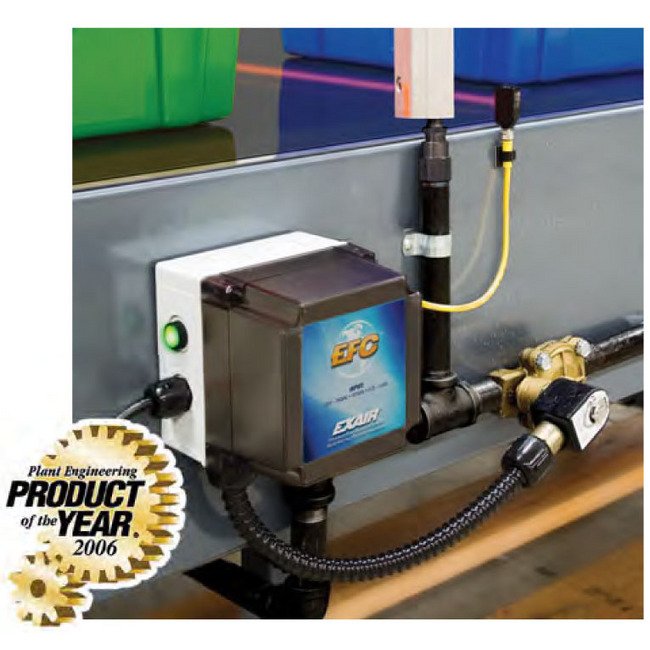

The EXAIR 9057 - 200 SCFM EFC is a cutting-edge electronic flow controller tailored for optimizing compressed air usage in diverse operations like blow off, drying, cooling, and static elimination. Equipped with a photoelectric sensor and timing control, it intelligently conserves compressed air by shutting off when not needed. This controller offers precise tuning to application demands with 8 programmable on/off modes, ensuring efficiency and flexibility. With a range of advanced features like NEMA 4/IP66 enclosure rating, long sensing distance, noise immunity, and robust construction, this unit delivers superior performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compact Sensor for Mounting in Tight Spaces | Easy Electrical Hook-Up ; 100-240 VAC, 50/60 Hz | Eight function analog timer for on/off , pulsing and delay control | NEMA 4/IP66 Environments | Sensor has Long Distance Sensing Up to 3 feet (1m) | Sensor has Superior Immunity to Noise and Inductive Loads | Sensor withstands Water and Dust for Accurate Readings | Timer Setting from 0.10 sec. to 120 hrs.
Specifications Applications

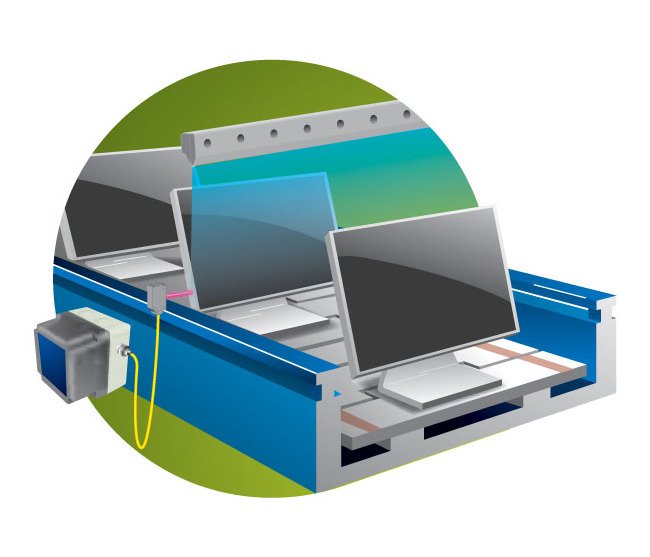

Auto Body Blowoff | Cleaning Molded Parts | Cooling Hot Parts | Dust Removal | Filling Operations | Neutralizing Static | Package Cleaning | Part Drying after Wash | Scrap Removal
Specifications Ce Compliant
Yes
Specifications Connection Type
3/4 National Pipe Thread (NPT)
Specifications Enclosure Rating
IP66 | NEMA 4
Specifications Flow Rate
200 SCFM | 5664 SLPM
Specifications Input Ac Voltage
100 to 240 V
Specifications Input Current
0.25 to 0.45 A
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Output Current To Sensor
0.65 A
Specifications Output Dc Voltage To Sensor
24 V
Specifications Rohs Compliant
Yes

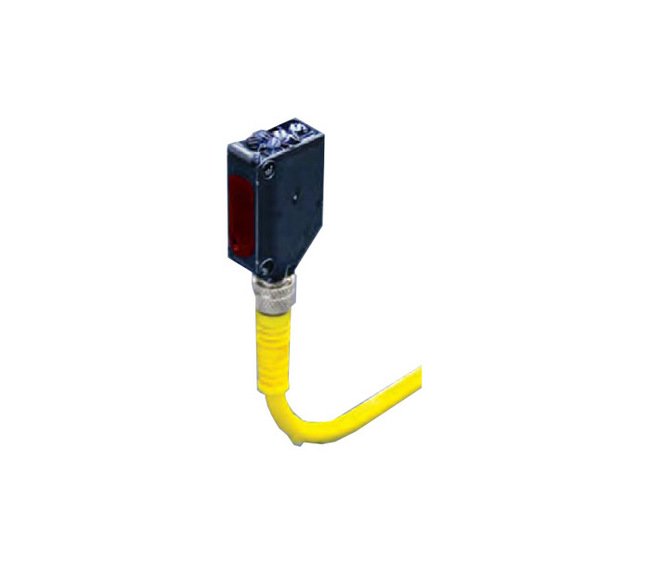

Specifications Sensing Range
Diffuse reflective to 3 feet (1 meter)
Specifications Sensor Dc Input Voltage
12 to 24 V
Specifications Sensor Input Current
30 mA
Specifications Temperature Rating
-13 to 131 ºF | -25 to 55 ºC
Specifications Valve Type
Solenoid Valve
