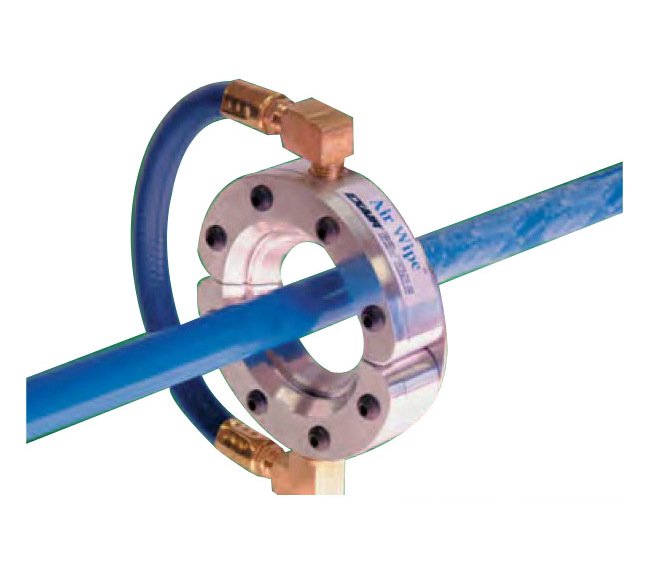

EXAIR 2430 Aluminum Standard Air Wipe, 1/2 Inch
EXAIR 2430 Aluminum Standard Air Wipe, 1/2 Inch
SKU:STA-1fb2a1
Efficiently blow off, dry, clean, and cool with the EXAIR 2430 Aluminum Standard Air Wipe. Durable aluminum construction, precise airflow control, and easy clamping design.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
EXAIR 2430 Aluminum Standard Air Wipe, 1/2 Inch
$249.99
Quantity: 1
Claim Your Seller Account
EXAIR 2430 Aluminum Standard Air Wipe, 1/2 Inch
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EXAIR 2430 Aluminum Standard Air Wipe is a versatile solution for uniform 360° blowoff, drying, cleaning, and cooling of pipes, cables, and more. Constructed with durable aluminum, this Air Wipe features compressed air inlets, filtration for clean air usage, precise shim sets for gap adjustment, and a temperature rating up to 150°F. With easy clamping and precise airflow regulation, this Air Wipe ensures efficient performance for a wide range of applications.
Product Specifications
Specifications Air Consumption
13.9 SCFM | 394 SLPM
Specifications Air Wipe Type
Standard
Specifications Features
Compressed Air Inlets : The Standard Air Wipe has compressed air inlets on each half. General purpose compressed air hose is supplied with sizes up to 4" (102mm) that couples the air supply of one half to the other. Sizes 9" (229mm) and larger have two inlets on each half that must be supplied with compressed air to maintain uniform airflow. | Filtration : The use of clean air is essential. Kits include an automatic drain filter with a 5 micron filter element that is sized properly for flow. | Materials of Construction : The Standard Air Wipe is constructed of aluminum. All models use coated screws and plastic shims. General purpose PVC air hose is included with sizes up to 4" (102mm). | Mounting : The Standard Air Wipe can be supported by the compressed air supply pipe. Tapped holes (1/4-20) on the downstream side of the Standard Air Wipe can also be used for mounting. | Regulation : A pressure regulator on the compressed air supply provides infinite control of flow, force and air consumption. Kits include a pressure regulator that is sized properly for flow. | Shim Sets : The Standard Air Wipe has a 0.002" (0.05 mm) gap setting. The compressed air exhausts through a gap which is set with a plastic shim positioned between the cap and body of the Standard Air Wipe. Force and flow through the Standard Air Wipe may be easily increased by adding shims to open the gap. Kits include a shim set (three additional shims). Shim sets include a .001" (0.03mm), .003" (0.08mm) and .004" (0.10mm) thick plastic shim. | Temperature : The Standard Air Wipe is rated for temperatures up to 150°F (66°C).
Specifications Inside Diameter
0.50 in | 13 mm
Specifications Material
Aluminum
Specifications Outside Diameter
2.50 in | 64 mm
Specifications Overall Diameter
3.25 in | 83 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level At 3 Ft 914 Mm
75 dBA
Specifications Thickness
1.13 in | 29 mm
