EXAIR 2434 4-inch Aluminum Standard Air Wipe

Name: EXAIR 2434 4-inch Aluminum Standard Air Wipe
Brand: Exair LLC
SKU: STA-f708f0
Price: 349.99 USD
Availability: OutOfStock

SKU:STA-f708f0

The EXAIR 2434 4-inch Aluminum Standard Air Wipe: Uniform 360° airstream for efficient blowoff, drying, and cooling, featuring adjustable airflow control.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

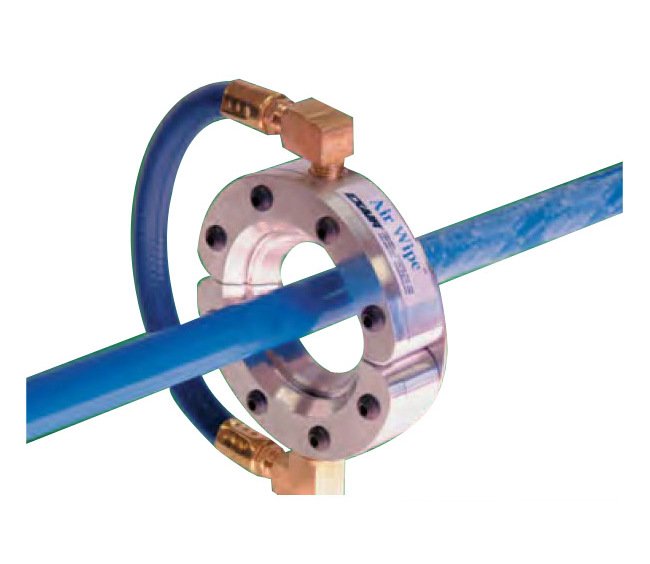

The EXAIR 2434 4-inch Aluminum Standard Air Wipe delivers a consistent 360° airstream, perfect for blowoff, drying, cleaning, and cooling applications. Constructed from high-quality aluminum, this Air Wipe features compressed air inlets for uniform airflow, a 0.002" gap setting for precise control, and a temperature rating of up to 150°F. With included filtration, mounting options, and shim sets for adjustable airflow, this Standard Air Wipe offers efficiency and reliability for industrial needs.

Product Specifications

Specifications Air Consumption

50.2 SCFM | 1422 SLPM

Specifications Air Wipe Type

Standard

Specifications Features

Compressed Air Inlets : The Standard Air Wipe has compressed air inlets on each half. General purpose compressed air hose is supplied with sizes up to 4" (102mm) that couples the air supply of one half to the other. Sizes 9" (229mm) and larger have two inlets on each half that must be supplied with compressed air to maintain uniform airflow. | Filtration : The use of clean air is essential. Kits include an automatic drain filter with a 5 micron filter element that is sized properly for flow. | Materials of Construction : The Standard Air Wipe is constructed of aluminum. All models use coated screws and plastic shims. General purpose PVC air hose is included with sizes up to 4" (102mm). | Mounting : The Standard Air Wipe can be supported by the compressed air supply pipe. Tapped holes (1/4-20) on the downstream side of the Standard Air Wipe can also be used for mounting. | Regulation : A pressure regulator on the compressed air supply provides infinite control of flow, force and air consumption. Kits include a pressure regulator that is sized properly for flow. | Shim Sets : The Standard Air Wipe has a 0.002" (0.05 mm) gap setting. The compressed air exhausts through a gap which is set with a plastic shim positioned between the cap and body of the Standard Air Wipe. Force and flow through the Standard Air Wipe may be easily increased by adding shims to open the gap. Kits include a shim set (three additional shims). Shim sets include a .001" (0.03mm), .003" (0.08mm) and .004" (0.10mm) thick plastic shim. | Temperature : The Standard Air Wipe is rated for temperatures up to 150°F (66°C).

Specifications Inside Diameter

4 in | 102 mm

Specifications Material

Aluminum

Specifications Outside Diameter

5.95 in | 151 mm

Specifications Overall Diameter

6.75 in | 172 mm

Specifications Pressure

80 psig | 5.5 bar

Specifications Sound Level At 3 Ft 914 Mm

81 dBA

Specifications Thickness

1.13 in | 29 mm

EXAIR 2434 4-inch Aluminum Standard Air Wipe
