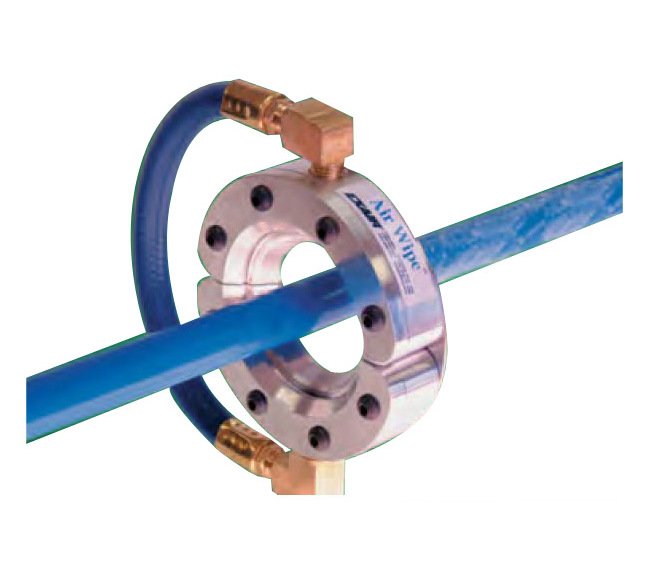

EXAIR 2436 - 6 Inch Aluminum Standard Air Wipe

Name: EXAIR 2436 - 6 Inch Aluminum Standard Air Wipe
Brand: Exair LLC
SKU: STA-5314b9
Price: 299.99 USD
Availability: OutOfStock

SKU:STA-5314b9

Enhance productivity with the EXAIR 2436 Aluminum Air Wipe. Uniform 360° airstream for blowoff, drying, cleaning, and cooling applications. Durable aluminum construction with versatile features for easy installation and optimal performance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EXAIR 2436 - 6 Inch Aluminum Standard Air Wipe offers a reliable 360-degree airstream for efficient blowoff, drying, cleaning, and cooling applications. Crafted from sturdy aluminum, this Standard Air Wipe is designed for durability and performance. With a pressure rating of 80 psig and an air consumption of 71.0 SCFM, it ensures powerful and consistent airflow. The split design allows easy clamping around various materials without the need for threading, making it a versatile solution for pipe, cable, extruded shapes, and more. Included with compressed air inlets, filtration kits, mounting options, and shim sets, the Standard Air Wipe provides precise control and adaptability for a wide range of industrial settings.

Product Specifications

Specifications Air Consumption

71.0 SCFM | 2010 SLPM

Specifications Air Wipe Type

Standard

Specifications Features

Compressed Air Inlets : The Standard Air Wipe has compressed air inlets on each half. General purpose compressed air hose is supplied with sizes up to 4" (102mm) that couples the air supply of one half to the other. Sizes 9" (229mm) and larger have two inlets on each half that must be supplied with compressed air to maintain uniform airflow. | Filtration : The use of clean air is essential. Kits include an automatic drain filter with a 5 micron filter element that is sized properly for flow. | Materials of Construction : The Standard Air Wipe is constructed of aluminum. All models use coated screws and plastic shims. General purpose PVC air hose is included with sizes up to 4" (102mm). | Mounting : The Standard Air Wipe can be supported by the compressed air supply pipe. Tapped holes (1/4-20) on the downstream side of the Standard Air Wipe can also be used for mounting. | Regulation : A pressure regulator on the compressed air supply provides infinite control of flow, force and air consumption. Kits include a pressure regulator that is sized properly for flow. | Shim Sets : The Standard Air Wipe has a 0.002" (0.05 mm) gap setting. The compressed air exhausts through a gap which is set with a plastic shim positioned between the cap and body of the Standard Air Wipe. Force and flow through the Standard Air Wipe may be easily increased by adding shims to open the gap. Kits include a shim set (three additional shims). Shim sets include a .001" (0.03mm), .003" (0.08mm) and .004" (0.10mm) thick plastic shim. | Temperature : The Standard Air Wipe is rated for temperatures up to 150°F (66°C).

Specifications Inside Diameter

6 in | 152 mm

Specifications Material

Aluminum

Specifications Outside Diameter

7.95 in | 202 mm

Specifications Overall Diameter

8.75 in | 222 mm

Specifications Pressure

80 psig | 5.5 bar

Specifications Sound Level At 3 Ft 914 Mm

84 dBA

Specifications Thickness

1.13 in | 29 mm
