EXAIR 3 Inch Ionizing Bar for Static Elimination
EXAIR 3 Inch Ionizing Bar for Static Elimination
SKU:STA-204904
Efficiently eliminate static on paper, film, and plastics with the compact EXAIR 3 Inch Ionizing Bar. UL-certified and RoHs compliant for industrial use.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
EXAIR 3 Inch Ionizing Bar for Static Elimination
$149.99
Quantity: 1
Claim Your Seller Account
EXAIR 3 Inch Ionizing Bar for Static Elimination
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

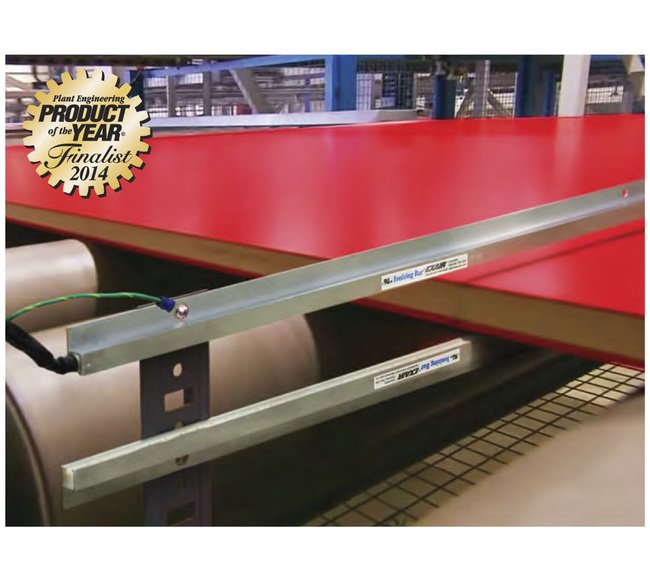

The EXAIR 3 Inch Ionizing Bar is a powerful solution for eliminating static electricity on paper, film, and plastics, preventing dust attraction, product damage, and personnel shocks. This electrically powered bar features a compact design for easy integration into machinery, offering a rapid static decay within a 2-inch range. Crafted with durable aluminum and stainless steel emitters, it operates at 5 kVrms with maximum safety measures including UL certification, RoHs compliance, and CE marking. Solve static-related issues like dust accumulation, material tearing, and jams in various industrial applications with this shockless, efficient, and cost-effective static eliminator.
Product Specifications
Specifications Advantages
Compact | Easy to Install, Equipped with Mounting Flange | Effective up to 2 inch (51 mm) | Fully Assembled | Low Cost | Low Maintenance | Rapid Static Decay | Rugged Design for Industrial Environments | Shockless, Non-Radioactive
Specifications Applications
Bag Making - Form and Fill | Converting Machinery | Hard to Reach Places or Obstructed Surfaces | Labeling | Neutralizing Shrink Wrap | Neutralizing Slitting Operations | Packaging | Product Moving at High Speeds | Screen Printing | Sheet Fed and Web Presses | Surfaces with an Extremely High Charge | Textiles
Specifications Certifications
Ionizing Bars are UL Component Recognized to U.S. and Canadian safety standards. Power supplies are Underwriters Laboratories (UL) Listed to U.S. and Canadian safety standards, and are European Conformity (CE) and Restriction Of Hazardous Substances (RoHs) Compliant.
Specifications Emitters Material
Stainless Steel
Specifications Included Accessories
5' (1.52 m) Length of Shielded Cable | Assembled Connector
Specifications Ionizing Bar Channel Material
Aluminum
Specifications Length
3 in | 76 mm
Specifications Maximum Ambient Temperature
165 ºF | 74 ºC
Specifications Maximum Distance
2 in | 51 mm
Specifications Plastic Parts Grading
UL rated 94 HB
Specifications Power Supply
5 kVrms, 5 milliamperes (maximum) power supply.
Specifications Problems Solved With Static Eliminators
Dust clinging to product | Hazardous sparks or shocks | Materials tearing, jamming or curling | Product clinging to itself, rollers, machine beds or frames | Sheet feeding problems
