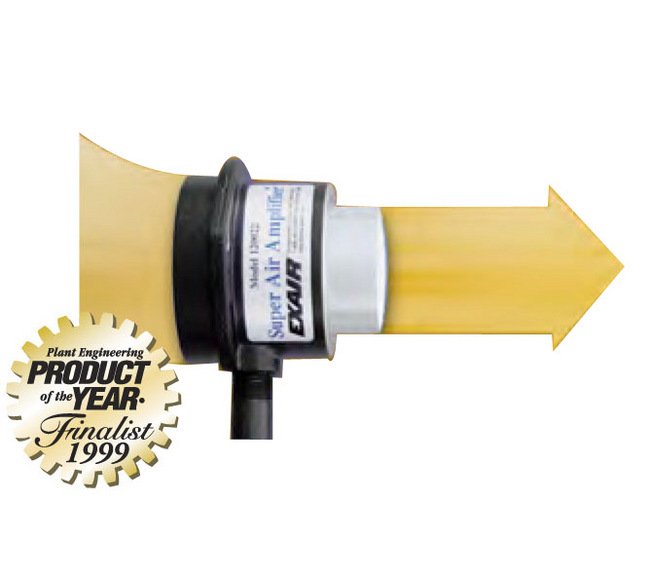

EXAIR 88 dBA Sound Level Super Air Amplifier - Model 120028

Name: EXAIR 88 dBA Sound Level Super Air Amplifier - Model 120028
Brand: Exair LLC
SKU: SUP-bc7504
Price: 479.99 USD
Availability: OutOfStock

SKU:SUP-bc7504

Experience superior airflow amplification and noise reduction with the EXAIR 88 dBA Sound Level Super Air Amplifier - Model 120028.

$479.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EXAIR 88 dBA Sound Level Super Air Amplifier, Model 120028, is a cutting-edge solution for efficient airflow amplification and noise reduction in industrial settings. Featuring a patented design with a precision shim, this air amplifier delivers a constant high-velocity airflow with minimal noise output, making it ideal for noise-sensitive environments. With a durable construction and versatile applications ranging from cooling and drying to fume extraction and ventilation, this Super Air Amplifier offers superior performance and reliability. Experience the benefits of a compact, maintenance-free, and energy-efficient airflow solution with the EXAIR 88 dBA Sound Level Super Air Amplifier.

Product Specifications

Specifications Advantages

Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet

Specifications Air Consumption

120 SCFM | 3396 SLPM

Specifications Air Volume At 6 In 152 Mm

9000 SCFM | 254700 SLPM

Specifications Air Volume At Outlet

3000 SCFM | 84900 SLPM

Specifications Amplification

25 Ratio

Specifications Applications

Specifications Corrosive Applications

Specifications Dimension B

4.50 in | 114 mm

Specifications Dimension H

2.44 in | 62 mm

Specifications Dimension J

8 in | 203 mm

Specifications Dimension K

8.94 in | 227 mm

Specifications Dimension L

2.38 in | 60 mm

Specifications Efficiency

High

Specifications Flow Adjustment

With Shims

Specifications Housing Length

9 in | 229 mm

Specifications Inside Diameter

6.20 in | 157 mm

Specifications Mounting Flange

Yes

Specifications Note

Tested with .009" (0.23 mm) shim.

Specifications Outlet Diameter

8 in | 203 mm

Specifications Overall Length

11.25 in | 286 mm

Specifications Pressure

80 psig | 5.5 bar

Specifications Sound Level

88 dBA

Specifications Temperature Rating

275 ºF | 135 ºC

Specifications Thread Size

3/4 in

Specifications Thread Type

NPT

EXAIR 88 dBA Sound Level Super Air Amplifier - Model 120028
