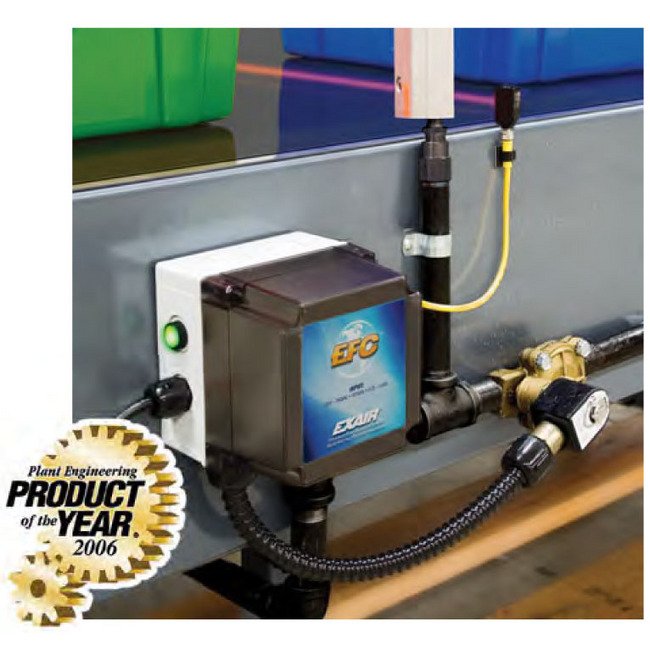

The EXAIR 9055 Electronic Flow Controller is a cutting-edge solution for compressed air management in a variety of industrial applications. Designed to optimize efficiency, this user-friendly device combines a photoelectric sensor with precise timing control to minimize compressed air usage during blow off, drying, cooling, and static elimination operations. With a configurable sensing distance and eight programmable on/off modes, the EFC offers exceptional versatility and energy savings. Its compact design allows for easy installation in tight spaces, while its IP66/NEMA 4 rating ensures reliable performance in challenging environments. Compliance with RoHS and CE standards underscores its commitment to quality and safety.
Product Specifications
Specifications Advantages

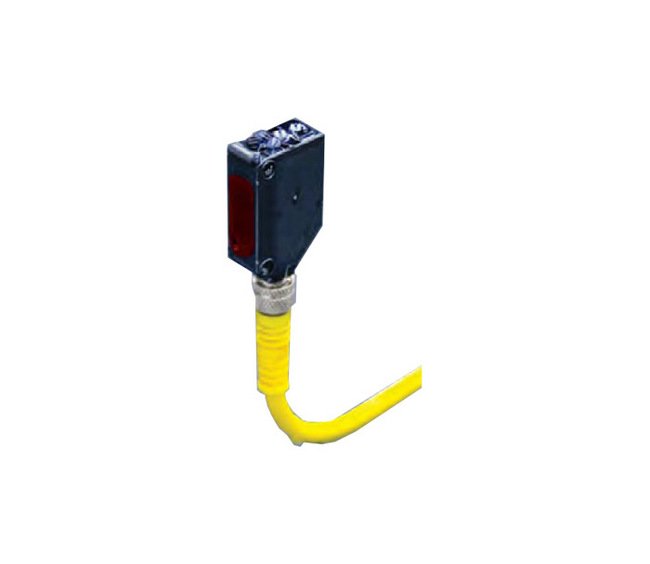

Compact Sensor for Mounting in Tight Spaces | Easy Electrical Hook-Up ; 100-240 VAC, 50/60 Hz | Eight function analog timer for on/off , pulsing and delay control | NEMA 4/IP66 Environments | Sensor has Long Distance Sensing Up to 3 feet (1m) | Sensor has Superior Immunity to Noise and Inductive Loads | Sensor withstands Water and Dust for Accurate Readings | Timer Setting from 0.10 sec. to 120 hrs.
Specifications Applications
Auto Body Blowoff | Cleaning Molded Parts | Cooling Hot Parts | Dust Removal | Filling Operations | Neutralizing Static | Package Cleaning | Part Drying after Wash | Scrap Removal
Specifications Ce Compliant
Yes
Specifications Connection Type
1/4 National Pipe Thread (NPT)
Specifications Enclosure Rating
IP66 | NEMA 4
Specifications Flow Rate
40 SCFM | 1133 SLPM
Specifications Input Ac Voltage
100 to 240 V
Specifications Input Current
0.25 to 0.45 A
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Output Current To Sensor
0.65 A
Specifications Output Dc Voltage To Sensor
24 V
Specifications Rohs Compliant
Yes
Specifications Sensing Range
Diffuse reflective to 3 feet (1 meter)
Specifications Sensor Dc Input Voltage
12 to 24 V
Specifications Sensor Input Current
30 mA
Specifications Temperature Rating
-13 to 131 ºF | -25 to 55 ºC
Specifications Valve Type
Solenoid Valve
