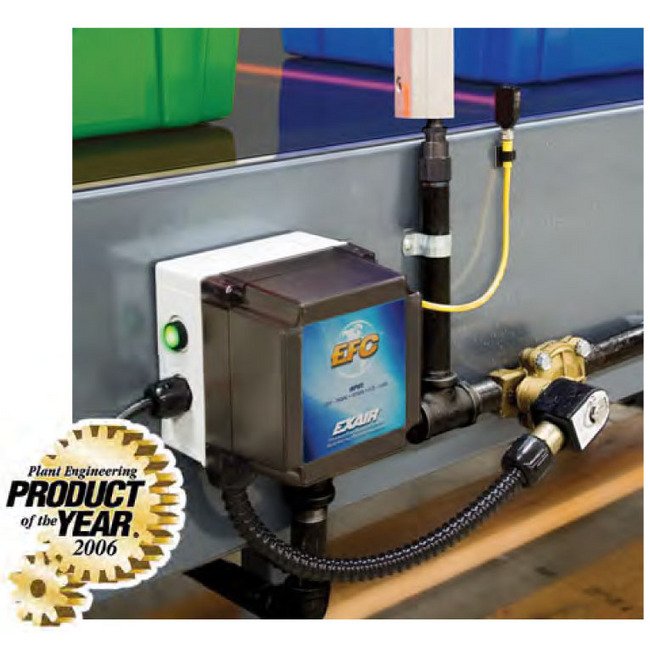

The EXAIR 9056 is a cutting-edge electronic flow controller specifically engineered to optimize compressed air usage in blow off, drying, cooling, and other operations. Equipped with a photoelectric sensor and adjustable timing controls, this user-friendly device conserves energy by shutting off air flow when not needed. With programmable modes, a wide sensing range, and compact design for tight spaces, the 9056 ensures efficient and precise operation. RoHS and CE compliant, the EFC is ideal for auto body blowoff, part cleaning, static elimination, and more.
Product Specifications
Specifications Advantages
Compact Sensor for Mounting in Tight Spaces | Easy Electrical Hook-Up ; 100-240 VAC, 50/60 Hz | Eight function analog timer for on/off , pulsing and delay control | NEMA 4/IP66 Environments | Sensor has Long Distance Sensing Up to 3 feet (1m) | Sensor has Superior Immunity to Noise and Inductive Loads | Sensor withstands Water and Dust for Accurate Readings | Timer Setting from 0.10 sec. to 120 hrs.
Specifications Applications

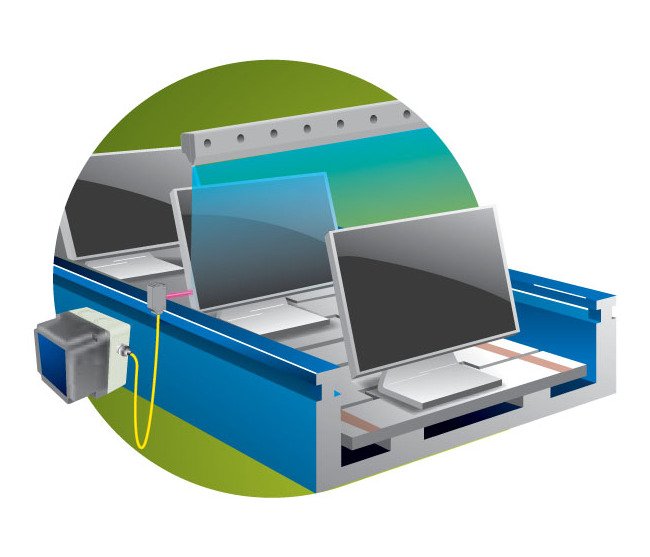

Auto Body Blowoff | Cleaning Molded Parts | Cooling Hot Parts | Dust Removal | Filling Operations | Neutralizing Static | Package Cleaning | Part Drying after Wash | Scrap Removal
Specifications Ce Compliant
Yes
Specifications Connection Type
1/2 National Pipe Thread (NPT)
Specifications Enclosure Rating
IP66 | NEMA 4
Specifications Flow Rate
100 SCFM | 2832 SLPM
Specifications Input Ac Voltage
100 to 240 V
Specifications Input Current
0.25 to 0.45 A
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Output Current To Sensor
0.65 A
Specifications Output Dc Voltage To Sensor
24 V
Specifications Rohs Compliant
Yes

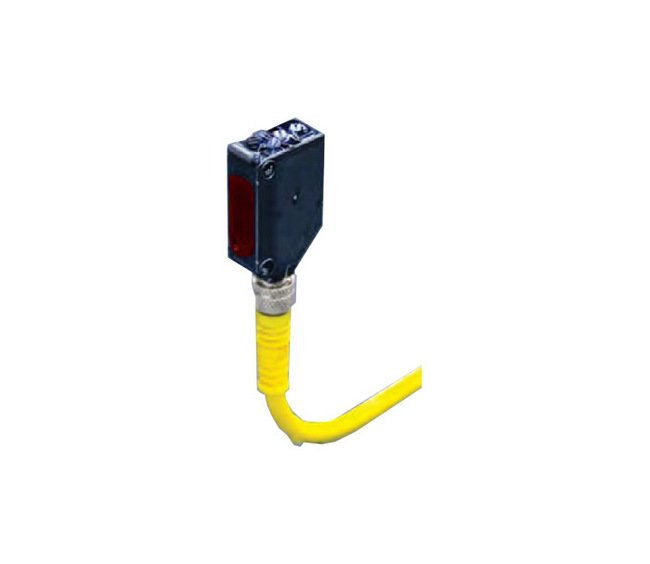

Specifications Sensing Range
Diffuse reflective to 3 feet (1 meter)
Specifications Sensor Dc Input Voltage
12 to 24 V
Specifications Sensor Input Current
30 mA
Specifications Temperature Rating
-13 to 131 ºF | -25 to 55 ºC
Specifications Valve Type
Solenoid Valve
