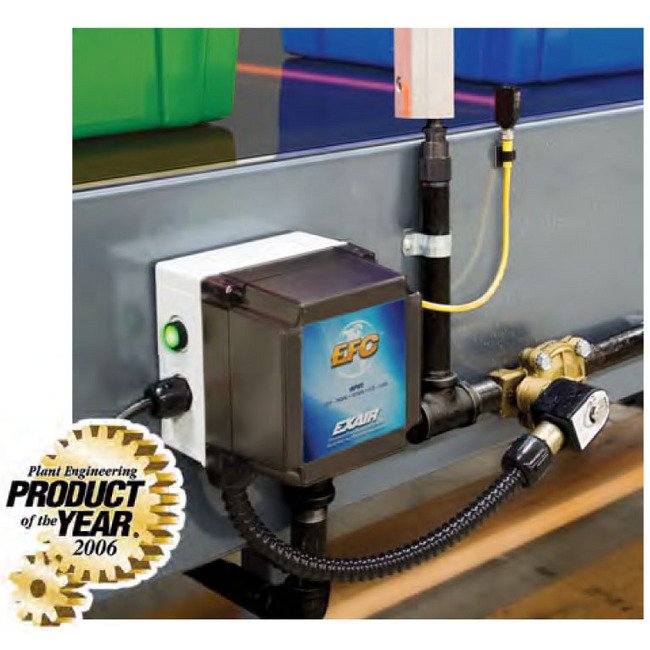

The EXAIR 9064 Electronic Flow Controller is a cutting-edge solution for optimizing compressed air usage in various industrial applications. Designed to reduce energy costs and enhance efficiency, it combines a photoelectric sensor with a timing control feature to precisely manage air flow based on the presence of parts. With a maximum flow rate of 350 SCFM and numerous programmable modes, this EFC ensures precise control tailored to specific operational requirements. Its compact design, robust construction, and compatibility with NEMA 4/IP66 environments make it ideal for auto body blowoff, cooling hot parts, package cleaning, and more. Not only is the 9064 EFC RoHS and CE compliant, but it also offers easy electrical hook-up, superior noise immunity, and resistance to water and dust, ensuring reliable performance in demanding industrial settings.
Product Specifications
Specifications Advantages
Compact Sensor for Mounting in Tight Spaces | Easy Electrical Hook-Up ; 100-240 VAC, 50/60 Hz | Eight function analog timer for on/off , pulsing and delay control | NEMA 4/IP66 Environments | Sensor has Long Distance Sensing Up to 3 feet (1m) | Sensor has Superior Immunity to Noise and Inductive Loads | Sensor withstands Water and Dust for Accurate Readings | Timer Setting from 0.10 sec. to 120 hrs.
Specifications Applications

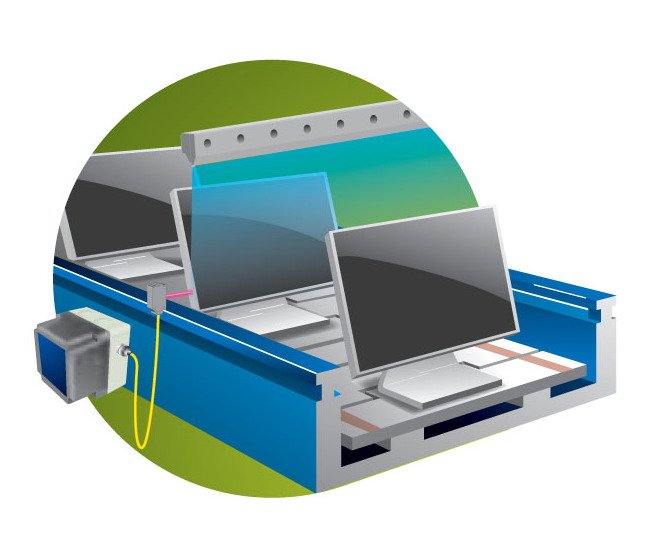

Auto Body Blowoff | Cleaning Molded Parts | Cooling Hot Parts | Dust Removal | Filling Operations | Neutralizing Static | Package Cleaning | Part Drying after Wash | Scrap Removal
Specifications Ce Compliant
Yes
Specifications Connection Type
1 National Pipe Thread (NPT)
Specifications Enclosure Rating
IP66 | NEMA 4
Specifications Flow Rate
350 SCFM | 9911 SLPM
Specifications Input Ac Voltage
100 to 240 V
Specifications Input Current
0.25 to 0.45 A
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Output Current To Sensor
0.65 A
Specifications Output Dc Voltage To Sensor
24 V
Specifications Rohs Compliant
Yes

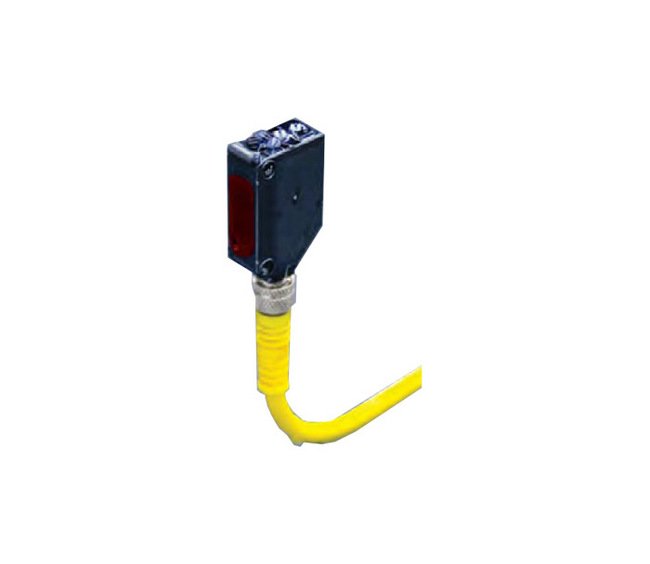

Specifications Sensing Range
Diffuse reflective to 3 feet (1 meter)
Specifications Sensor Dc Input Voltage
12 to 24 V
Specifications Sensor Input Current
30 mA
Specifications Temperature Rating
-13 to 131 ºF | -25 to 55 ºC
Specifications Valve Type
Solenoid Valve
