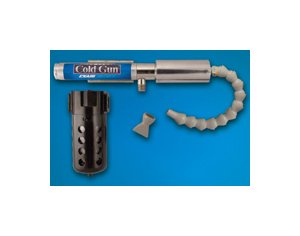

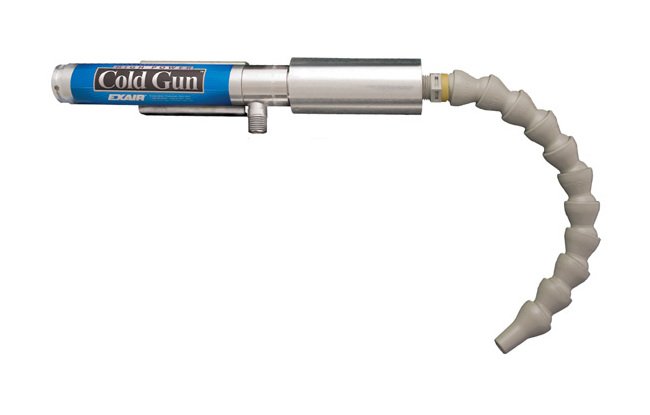

Exair High Power Cold Gun with Single Point Hose Kit
Exair High Power Cold Gun with Single Point Hose Kit
SKU:GUN-28b9f8
Enhance machining productivity and tool life with the Exair High Power Cold Gun. Quiet, low maintenance, and precision cooling for various applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Exair High Power Cold Gun with Single Point Hose Kit
$399.99
Quantity: 1
Claim Your Seller Account
Exair High Power Cold Gun with Single Point Hose Kit
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Exair High Power Cold Gun with Single Point Hose Kit offers a cutting-edge solution for reducing heat buildup in dry machining operations. Operating at 50°F (28°C) below supply air temperature, this system enhances tool life and machining rates. With a quiet 82 dBA operation and no wearing parts, it improves productivity, prevents burning, extends tool life, improves tolerance control, and ensures finished parts are dry. Ideal for applications such as tool sharpening, grinding, milling, and plastic machining, the Cold Gun delivers clean, cold air efficiently.
Product Specifications
Applications Applications

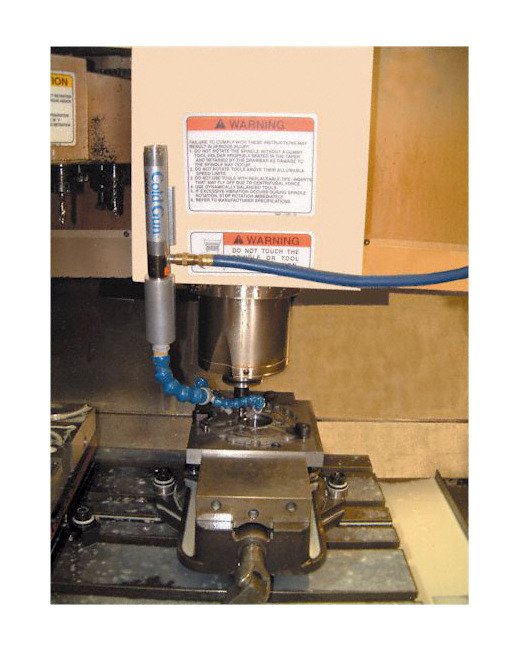

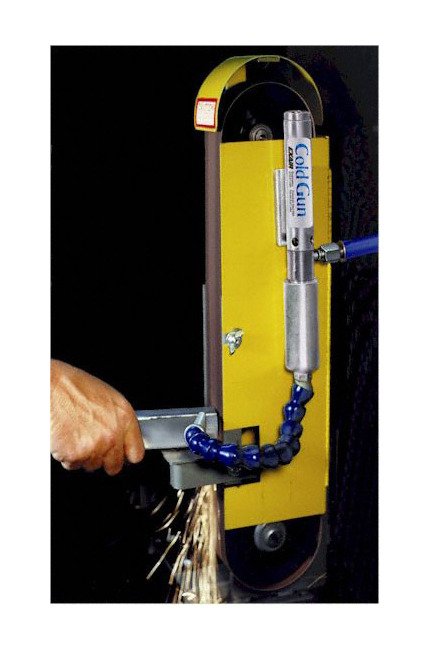

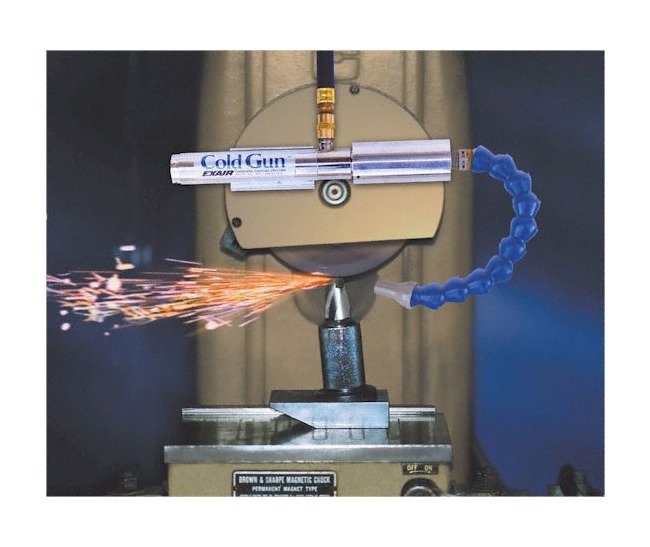

Tool sharpeningDrill and cutter grindingRoutingPlunge and form grindingMillingSurface grindingDrillingTire grindingBand sawingPlastic machining
How The Cold Gun Works How The Cold Gun Works
The Cold Gun incorporates a vortex tube to convert an ordinary supply of compressed air into two low pressure streams, one hot and one cold. The hot airstream is muffled and discharged through the hot air exhaust. The cold air is muffled and discharged through the flexible hose, which directs it to the point of use. The magnetic base provides easy mounting and portability.The Compressed Air SupplyThe Cold Gun is designed to use full line pressure of 80-100 PSIG (5.5-6.9 BAR). Temperature drop and flow are reduced when lower input pressures are applied. The use of clean, filtered air is essential to the operation of the Cold Gun. A manual drain filter that removes moisture, dirt and other particulates from the compressed air is included with each Cold Gun System.Controlling the Cold AirThe EXAlR Cold Gun gives instant cold air when filtered compressed air is supplied to it. Cycling on and off is a good way to save air. For on and off control, use a Model 9012 Manual Shutoff Valve. To turn the Cold Gun on with the machine, the Model 9020 Solenoid Valve may be used and wired through the machine control switch. This method is ideal for hand grinders and drill sharpeners.
Technical Specs Air Consumption
30 scfm | 850 slpm
Technical Specs Brands
Exair®
Technical Specs Cold Gun Advantages
Improves production ratesPrevents burningExtends tool life - reduces breakageImproves tolerance controlPrevents smearing of metal or plasticsFinished part is dryEliminates wheel loading
Technical Specs Fan Nozzle
32 mm
Technical Specs Pressure Supply
100 psig | 6.9 bar
Technical Specs Sound Level
82 dBA
