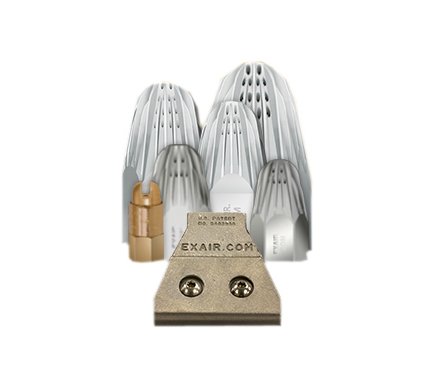

EXAIR HP1126SS 1 Inch High Power Air Nozzle
EXAIR HP1126SS 1 Inch High Power Air Nozzle
SKU:HIG-03a82e
EXAIR HP1126SS 1 Inch High Power Air Nozzle: Powerful, compact, and compliant with OSHA standards for noise and pressure. Ideal for diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
EXAIR HP1126SS 1 Inch High Power Air Nozzle
$129.99
Quantity: 1
Claim Your Seller Account
EXAIR HP1126SS 1 Inch High Power Air Nozzle
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EXAIR HP1126SS 1 Inch High Power Air Nozzle is a top-tier solution for generating a powerful, wide airstream in compact spaces within budget constraints. Constructed from 316 stainless steel, it operates at 80 psig pressure, delivering a force of 1 lb with reduced noise levels. With applications ranging from chip removal to material conveying, this nozzle offers 10 dBA noise reduction, improved safety, and compliance with OSHA noise and pressure requirements, ensuring enhanced production efficiency and cost savings.
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
17.5 SCFM | 495 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
1 lb | 462 g
Specifications Inlet
1/8 FNPT
Specifications Material
316 Stainless Steel
Specifications Note
Force measured at 12" (305 mm) from target with a .025" (0.64 mm) shim installed.
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
82 dBA
