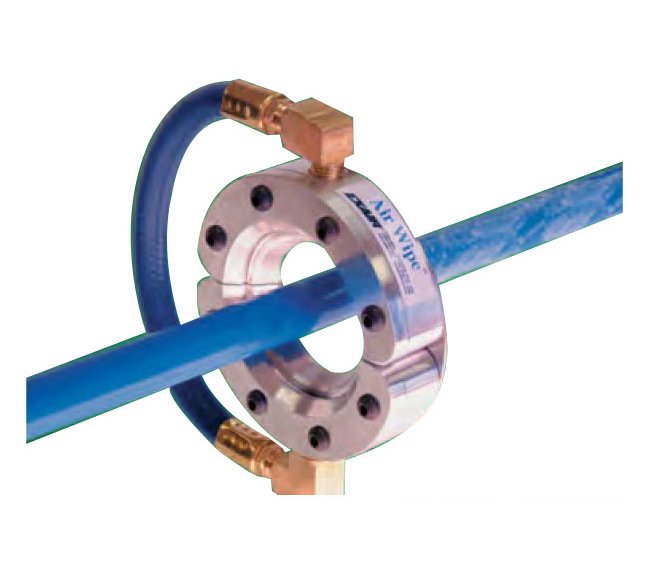

EXAIR Standard Air Wipe - 1 Inch Aluminum
EXAIR Standard Air Wipe - 1 Inch Aluminum
SKU:STA-cbf871
Enhance productivity with EXAIR's Aluminum Standard Air Wipe - optimal for blowoff, drying, and cooling applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
EXAIR Standard Air Wipe - 1 Inch Aluminum
$289.99
Quantity: 1
Claim Your Seller Account
EXAIR Standard Air Wipe - 1 Inch Aluminum
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EXAIR Standard Air Wipe offers a versatile airflow solution for blowoff, drying, cleaning, and cooling applications. Constructed with durable aluminum, this Standard Air Wipe ensures a uniform 360° airstream around pipes, cables, hoses, and more. With features like compressed air inlets, filtration system, adjustable gap setting, and temperature rating up to 150°F, it provides efficient and precise air control. Ideal for industrial settings requiring reliable and adaptable air wiping capabilities.
Product Specifications
Specifications Air Consumption
19.1 SCFM | 541 SLPM
Specifications Air Wipe Type
Standard
Specifications Features
Compressed Air Inlets : The Standard Air Wipe has compressed air inlets on each half. General purpose compressed air hose is supplied with sizes up to 4" (102mm) that couples the air supply of one half to the other. Sizes 9" (229mm) and larger have two inlets on each half that must be supplied with compressed air to maintain uniform airflow. | Filtration : The use of clean air is essential. Kits include an automatic drain filter with a 5 micron filter element that is sized properly for flow. | Materials of Construction : The Standard Air Wipe is constructed of aluminum. All models use coated screws and plastic shims. General purpose PVC air hose is included with sizes up to 4" (102mm). | Mounting : The Standard Air Wipe can be supported by the compressed air supply pipe. Tapped holes (1/4-20) on the downstream side of the Standard Air Wipe can also be used for mounting. | Regulation : A pressure regulator on the compressed air supply provides infinite control of flow, force and air consumption. Kits include a pressure regulator that is sized properly for flow. | Shim Sets : The Standard Air Wipe has a 0.002" (0.05 mm) gap setting. The compressed air exhausts through a gap which is set with a plastic shim positioned between the cap and body of the Standard Air Wipe. Force and flow through the Standard Air Wipe may be easily increased by adding shims to open the gap. Kits include a shim set (three additional shims). Shim sets include a .001" (0.03mm), .003" (0.08mm) and .004" (0.10mm) thick plastic shim. | Temperature : The Standard Air Wipe is rated for temperatures up to 150°F (66°C).
Specifications Inside Diameter
1 in | 25 mm
Specifications Material
Aluminum
Specifications Outside Diameter
2.95 in | 75 mm
Specifications Overall Diameter
3.75 in | 95 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level At 3 Ft 914 Mm
76 dBA
Specifications Thickness
1.13 in | 29 mm
