Expansion Section with Splice - Aluminum/Stainless Steel Bar
Expansion Section with Splice - Aluminum/Stainless Steel Bar
SKU:CRA-f9860c
Manage thermal expansion seamlessly with our Aluminum/Stainless Steel Expansion Section. Durable, reliable, and easy to install.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Expansion Section with Splice - Aluminum/Stainless Steel Bar
$129.99
Quantity: 1
Claim Your Seller Account
Expansion Section with Splice - Aluminum/Stainless Steel Bar
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

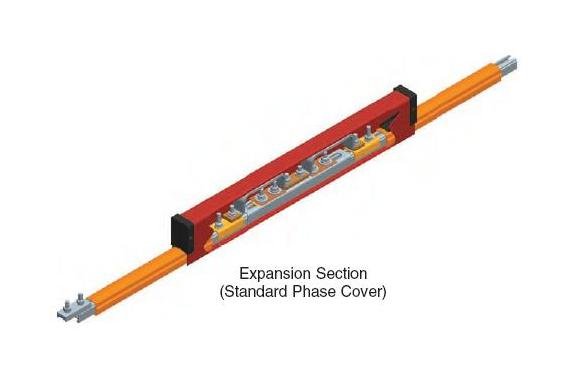

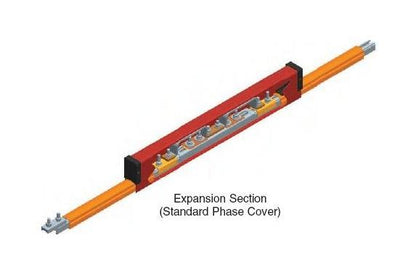

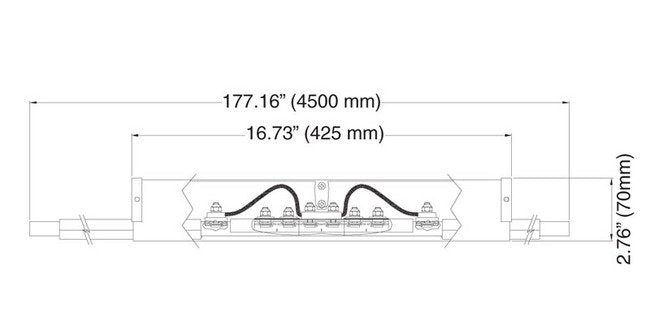

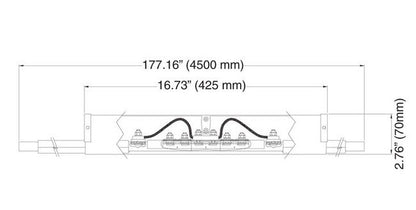

The Expansion Section with Splice Installed is an essential component for managing thermal expansion/contraction in conductor bar systems exceeding 492 ft. (150m). Designed for structural expansion joints, this 14' 9'' aluminum/stainless steel unit ensures seamless operation. Featuring a 200A amperage rating and a 2.0'' (50mm) maximum gap, it offers durability and reliability. Easy to install in place of a standard conductor bar length, it optimizes system performance and safety.
Product Specifications
Specifications Amperage Rating
200 A
Specifications Cover Type
Medium Heat Cover (Red)
Specifications Material
Aluminum / Stainless Steel
Specifications Weight
7.3 lb | 3.3 kg
